float adjustment for using Mikuni roundslide (Read 2683 times)

tophased Ex Member	float adjustment for using Mikuni roundslide 05.05.11 at 12:34:30 Hi does anyone know the float height adjustment for using 2 x 36mm Mikuni roundslides carbs on the tr1 1981 Thanks Jamie Hallo Kennt jemand die Schwimmer Höhenverstellung für den Einsatz von 2 x 36 Mikuni roundslides Kohlenhydrate auf dem tr1 1981 Dank Jamie
tophased Ex Member
	IP Logged

Odin TR1 Board Extraterrestrial Member Posts: 2083 Gender: Bike: xv750se Bj. 81-UK, xv750se Bj.86-US	Re: float adjustment for using Mikuni roundslide Reply #1 - 05.05.11 at 15:58:39 Hy Jamie , yes we konw it ..... and You cann downloud your self ... at this LINK: [url]https://www.tr1.de/pages/technics_manual.php kick me [/url] then you go on page Complete XV750SE/XV1000(TR1) repair manuals, chapter 4 Carburetor ...... the Repair manuels are for all Xv and Tr1 at this time of bulding
	Gruß Odin E-WORX customizing of wring
	IP Logged

Ali TR1 Board Extraterrestrial Member Posts: 1281 Bike: TR 1	Re: float adjustment for using Mikuni roundslide Reply #2 - 06.05.11 at 20:20:00 Hi Jamie, I would start to adjust the floaters to bring the fuel level to the upper edge of the floating chamber, i think it´s a bit of a trial and error. also the jet-size is important. Controlling the colour of spark Plugs will help. I once tried 36 Mikunis from a Yamaha Bulldog ( 1100 ccm V-Twin) , runs smooth at first, but floating chambers where too small, the mixture went too lean after a short time at full speed. I presume you will use carbs of the Yam-XT ? Please write if you are successful, Ali

	IP Logged

tophased Ex Member	Re: float adjustment for using Mikuni roundslide Reply #3 - 11.05.11 at 02:31:04 Quote from Ali on 06.05.11 at 20:20:00: Hi Jamie, I would start to adjust the floaters to bring the fuel level to the upper edge of the floating chamber, i think it´s a bit of a trial and error. also the jet-size is important. Controlling the colour of spark Plugs will help. I once tried 36 Mikunis from a Yamaha Bulldog ( 1100 ccm V-Twin) , runs smooth at first, but floating chambers where too small, the mixture went too lean after a short time at full speed. I presume you will use carbs of the Yam-XT ? Please write if you are successful, Ali Thanks Ali there out of the box from sudco I was going to use them in my Yamaha XS650 race bike which has been rephased 277 degrees and bored out to 750 but the 34 's worked better spoke to Mr Mercury Morse from Vintage brake in the US who is a carb genius recommended I use them on the TR1 reckons I would smoke it in first he's given me a base setting's and said because of the 2 into 1 exhaust I will have to play with the pilot jets also the floats will need adjusting because of the angle he reckons i may have to change the needle's /and main jet which both those would probably help the top end leanness you were talking about will keep you posted Cheers Jamie

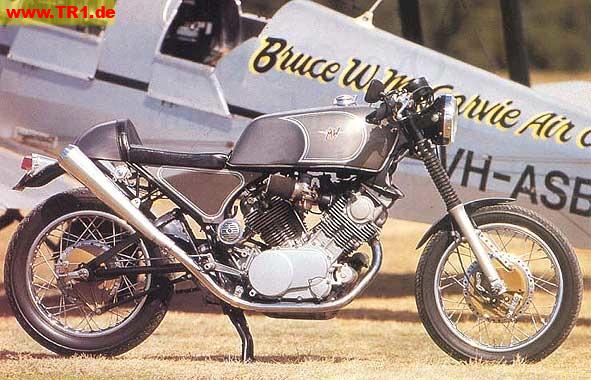

tophased Ex Member	max_williams.jpg Picture below may be scaled. Click link or picture for original size \| Click here for all attachments
	IP Logged

nanno TR1 Board Extraterrestrial Member Ich mags halt gern ned ganz so original... Posts: 2274 Gender: Bike: TR1, XT600, SR500-Gespann	Re: float adjustment for using Mikuni roundslide Reply #4 - 27.05.11 at 19:30:01 Now that is about as sweet as a nut... Normally (horizontal installation) you tune the floats so that they're level with the gasket, if your carbs are leaning out on top and tend to pick up the throttle badly, you have to raise the float level, but please meassure it with a vernier caliper and only adjust in 0.5mm steps. You can always try a bigger pilot jet (to improve overall fuel flow) or if it is from 3/4s throttle to w.o.t. try bigger main jets. Cheers, Greg - only playing around with TM40ies, TM36es and RS34s at the moment, so I can't give you a base setting.
	Frei ist, wer frei denkt! http://greasygreg.blogspot.co.at/
