electrical question re handlebar earthing (Read 1924 times)

tophased Ex Member	electrical question re handlebar earthing 16.11.12 at 02:19:45 hi i have put alloy clip ons on my mighty TR1 but I seem to be having a starting issue does the starter button switch earth to the handle bars ? thanks J
tophased Ex Member
	IP Logged

ernie8 TR1 Board Senior Member Posts: 299 Bike: TR1 beinahe original, RD 250	Re: electrical question re handlebar earthing Reply #1 - 16.11.12 at 17:42:09 Hi J simple answer: yes. There is just one wire to the starter button, which is switched to earth when pressing the button. Juergen
	TR1 seit April '81 im Erstbesitz
	IP Logged

tophased Ex Member	Re: electrical question re handlebar earthing Reply #2 - 16.11.12 at 23:14:14 ok thanks but how does it earth to the handlebars when the TR1 has rubber mounted handle bars ?
tophased Ex Member
	IP Logged

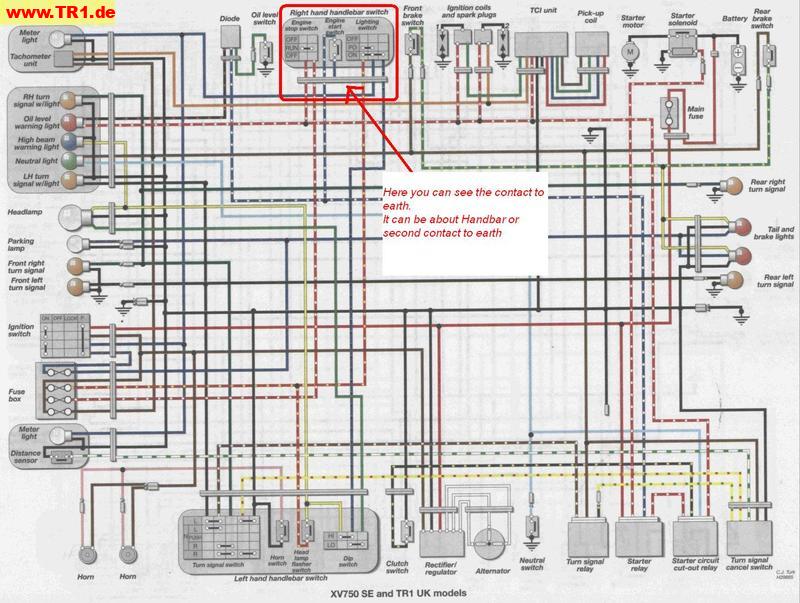

Odin TR1 Board Extraterrestrial Member Posts: 2083 Gender: Bike: xv750se Bj. 81-UK, xv750se Bj.86-US	Re: electrical question re handlebar earthing Reply #3 - 17.11.12 at 12:17:40 Pictures speak louder than words. If you need original plan, then here: wiring/us_uk_XV750SE_TR1<-switsh me
	Gruß Odin E-WORX customizing of wring
	IP Logged

tophased Ex Member	Re: electrical question re handlebar earthing Reply #4 - 18.11.12 at 01:03:06 thanks guys I ended up threading a cable through the original sleeve from switch to headlamp soldering it to the switch and adding it it to the earth circuit in the headlamp
tophased Ex Member
	IP Logged
