1985 Xv1000 oil flow problem (Read 4242 times)

cobrawide22 Ex Member	1985 Xv1000 oil flow problem 14.11.19 at 15:09:20 Hello, I posted this on another virago forum and got some help but before I split the engine cases I hope someone here can help me. My problem is that there is zero oil flowing to the external oil pipes that oil the camshafts. At idle no oil can be seen. With the engine running at about 5000 rpms ,when I look down in to the main banjo bolt hole( where the bolt goes in to the right crankcase) I can see a very small amount of oil but there is no pressure to push it upwards towards the banjo bolt. SEE PICTURE BELOW I have done the following to test and the oil filter is in correctly and filling with oil. Removed oil lines and union bolts and blew pressured air though them. removed left and right crankcase covers and blew compressed air through and holes i could determine that were oil related. Replaced oil pump, oil pump chain and sprocket and blew air through the pumps oil pipe line. I tested the pressure relive valve from right side with a screwdriver and there is strong resistance from the spring in the pressure relief valve. the piston inside returns as expected. When the engine is started there is no oil visible in the oil window which I believe is to be expected and that suggests there is good pressure within the engine. Still no oil flowing up to the external lines. With engine running oil does not come out of the right crank case where the external oil lines begin. I am out of ideas. Does anyone know of the complete route beginning to end how oil is fed to the oil lines. I was given the yamaha lubrication diagram but it is of no real help showing the exact oil route. Also if not a worn oil pump, blockage or broken pressure relieve valve what can cause this. Thanks Tom

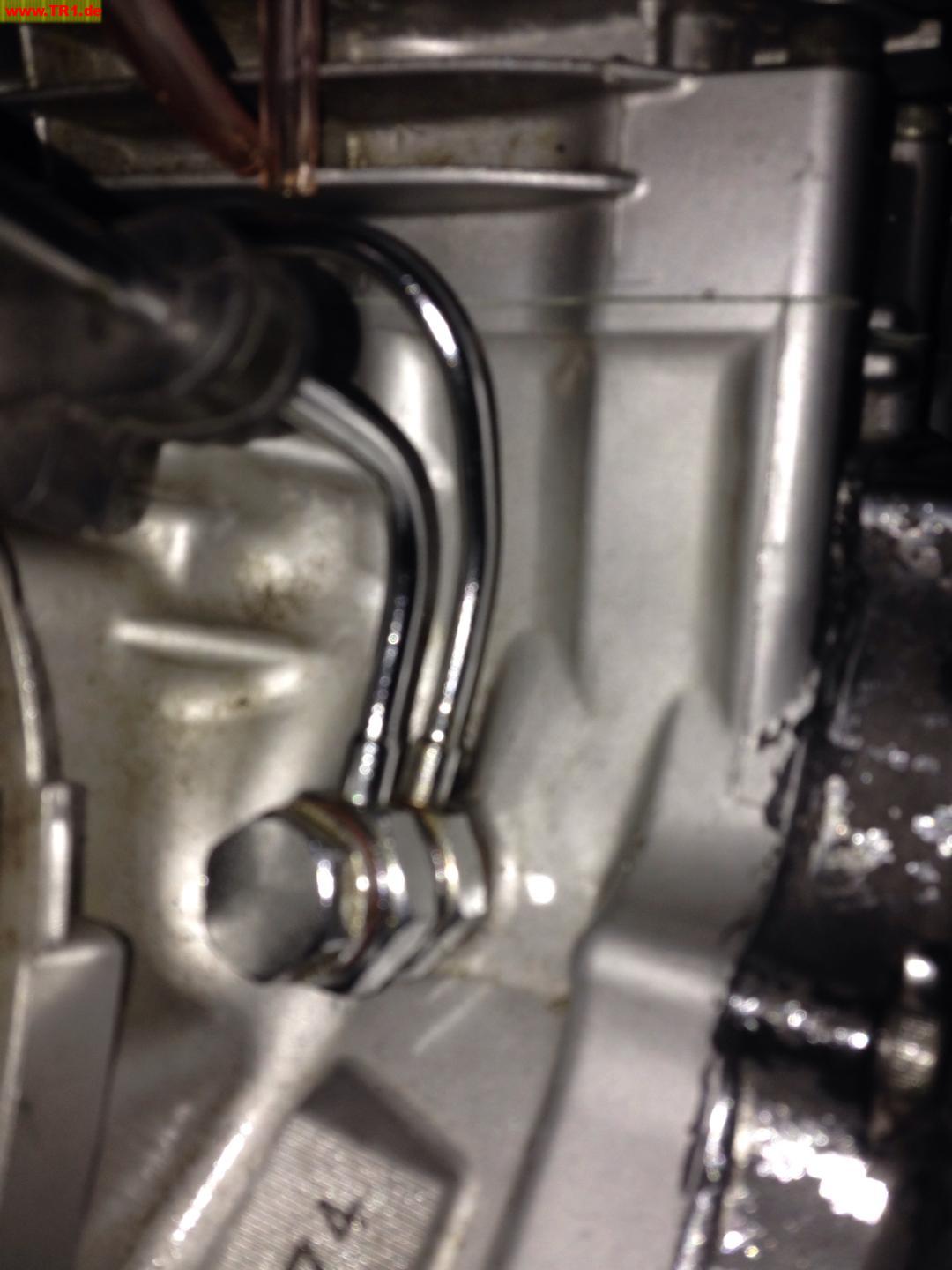

cobrawide22 Ex Member	UNION.jpg Picture below may be scaled. Click link or picture for original size \| Click here for all attachments
	IP Logged

hornschorsch TR1 Board Extraterrestrial Member Posts: 2884 Gender: Bike: TR1, SR500, XJ650-Turbo, RD350-YPVS, R[DG]500	Re: 1985 Xv1000 oil flow problem Reply #1 - 14.11.19 at 17:04:58 Hi, the lower screw of the three screws which hold the oil filter cover is a special one with a thicker shaft and only a shorter thread at the tip. If this screw is replaced by a "normal" one, oil flows from the filter housing back into the oil pan.
	Gruss, Schorsch Fahrt so schnell ihr könnt, so lange ihr noch könnt! (Uli Peil im XJ-Forum) Das Ding ist völlig unnötig! (Roel im TR1-Forum)
	IP Logged

cobrawide22 Ex Member	Re: 1985 Xv1000 oil flow problem Reply #2 - 14.11.19 at 17:34:50 Thanks for the reply but it is the correct screw.
cobrawide22 Ex Member
	IP Logged

nanno TR1 Board Extraterrestrial Member Ich mags halt gern ned ganz so original... Posts: 2263 Gender: Bike: TR1, XT600, SR500-Gespann	Re: 1985 Xv1000 oil flow problem Reply #3 - 15.11.19 at 06:44:02 What's the condition of the seal in the right engine cover that goes over the crankshaft-tip? This should be in good condition and not worn or the like. Does your oil-pump have a locating dowel on the center opening, where it goes into the engine case? Could you share pictures of your right sidecover and oil-filter cover please? (There's two types of oil-filter covers drilled in different locations and depending on the sidecover you may have the wrong one.) Hope this helps Greg
	Frei ist, wer frei denkt! http://greasygreg.blogspot.co.at/
	IP Logged

Gredner TR1 Board God Member Posts: 802 Gender: Bike: Tr1, ´81, grün	Re: 1985 Xv1000 oil flow problem Reply #4 - 15.11.19 at 09:12:31 Hallo Tom, is there enough Oil in the Motor?
	Gruß Karsten
	IP Logged

cobrawide22 Ex Member	Re: 1985 Xv1000 oil flow problem Reply #5 - 15.11.19 at 13:38:37 Quote from nanno on 15.11.19 at 06:44:02: What's the condition of the seal in the right engine cover that goes over the crankshaft-tip? This should be in good condition and not worn or the like. Does your oil-pump have a locating dowel on the center opening, where it goes into the engine case? Could you share pictures of your right sidecover and oil-filter cover please? (There's two types of oil-filter covers drilled in different locations and depending on the sidecover you may have the wrong one.) Hope this helps Greg Greg Thanks for responding. That seal in the right right cover that goes over the crankshaft was not in great condition if I remember correctly. I will get a new one. So would that effect oil pressure to the main union bolt hole? Yes my oil-pump does have a locating dowel on the center opening. Why I am fairly sure it is original side cover and oil filter cover but I will take a picture later on. Thanks Tom
cobrawide22 Ex Member
	IP Logged

cobrawide22 Ex Member	Re: 1985 Xv1000 oil flow problem Reply #6 - 15.11.19 at 14:09:59 Quote from Gredner on 15.11.19 at 09:12:31: Hallo Tom, is there enough Oil in the Motor? hello, yes. The oil level is correct.
cobrawide22 Ex Member
	IP Logged

Ali TR1 Board Extraterrestrial Member Posts: 1278 Bike: TR 1	Re: 1985 Xv1000 oil flow problem Reply #7 - 15.11.19 at 20:32:22 Hi Tom, the Oil -fed is simple, Pump to Filter enclosure, then trough the Filter Cover into the right cover, where it splits into two lines: one to the Top (Heads), one to the crank. ( Of course there is another Oil-Line for the gear-box, the pump has two rotors, one for the ball-bearings /Gear-box, one for crank and heads) In case your Pump delivers enough pressure, the relief valve works, the Filter is mounted correctly (open end to the outside), the gasket for the right side cover is tight (also to the inside, very important) , and the sealing where the crankshaft sits on is good, the onliest possibility where pressure can disappear is the big end of the crank, the bearings for the Rod may be worn extremly, also the side to side clearance of the rods may be to much. I would not run that engine until you found out what is wrong, Ali

	IP Logged

cobrawide22 Ex Member	Re: 1985 Xv1000 oil flow problem Reply #8 - 15.11.19 at 21:55:02 [full quote deleted by moderator] Ali, thank you very much. This is exactly what i was looking for. I am hoping that it is the right crankcase cover seal that Greg mentioned.
cobrawide22 Ex Member
	IP Logged

nanno TR1 Board Extraterrestrial Member Ich mags halt gern ned ganz so original... Posts: 2263 Gender: Bike: TR1, XT600, SR500-Gespann	Re: 1985 Xv1000 oil flow problem Reply #9 - 16.11.19 at 09:58:12 Yup that seal is basically meant to take the full pressure of the oil-pump (minus the losses in the crank and filter), so any loss of pressure over there will be rather dramatic. Regarding the missing dowel: Well I just had an engine on the bench where it was missing. Still produced good (enough) pressure when cold, but once hot the pressure dropped a lot.
	Frei ist, wer frei denkt! http://greasygreg.blogspot.co.at/
	IP Logged
