Carburetor diaphragm replacement (Read 1196 times)

Borderman Ex Member	Carburetor diaphragm replacement 10.06.20 at 17:18:58 Hi All, Need some help/advice... I bought a set of replacement diaphragms for my 1981 TR1 but when I removed the old diaphragms I did not mark the slide in relation to the locator tab on the top of the carb. There are two holes in the slide that I assume must sit in a specific location (or maybe not) Hope this makes sense ... is there anyone who has completed this on another bike who can advise?
Borderman Ex Member
	IP Logged

nanno TR1 Board Extraterrestrial Member Ich mags halt gern ned ganz so original... Posts: 2263 Gender: Bike: TR1, XT600, SR500-Gespann	Re: Carburetor diaphragm replacement Reply #1 - 11.06.20 at 09:38:29 The slide cutout goes towards the airfilter, i.e. away from the engine.
	Frei ist, wer frei denkt! http://greasygreg.blogspot.co.at/
	IP Logged

Borderman Ex Member	Re: Carburetor diaphragm replacement Reply #2 - 11.06.20 at 21:28:22 Thanks ... I got some info off the net ... shows similar carbs and advises that the 2 holes on the bottom of the slide should be towards the engine side
Borderman Ex Member
	IP Logged

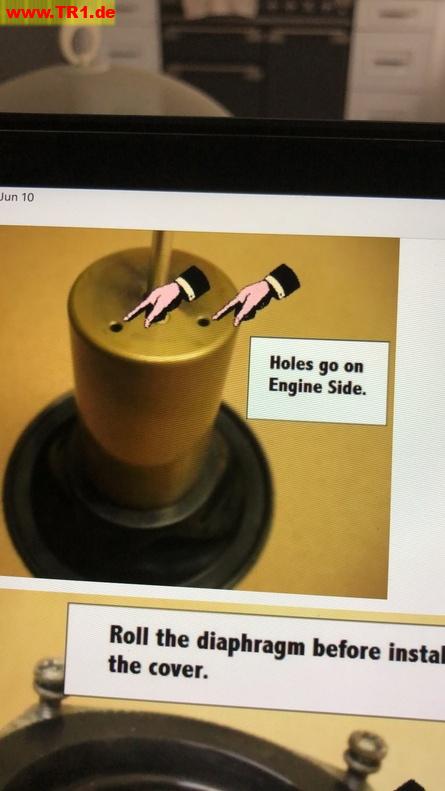

Borderman Ex Member	Re: Carburetor diaphragm replacement Reply #3 - 11.06.20 at 22:30:28 I hope I have that right ... see picture attached ... not sure what you mean about the slide cutout?
Borderman Ex Member	C1674092-A978-4FEC-A7DF-218938DC7797.jpeg Picture below may be scaled. Click link or picture for original size \| Click here for all attachments
	IP Logged

hornschorsch TR1 Board Extraterrestrial Member Posts: 2884 Gender: Bike: TR1, SR500, XJ650-Turbo, RD350-YPVS, R[DG]500	Re: Carburetor diaphragm replacement Reply #4 - 12.06.20 at 13:12:24 Some carbs have slides which are beveled at the lower end but according to your photos this is not the case with the TR1.
	Gruss, Schorsch Fahrt so schnell ihr könnt, so lange ihr noch könnt! (Uli Peil im XJ-Forum) Das Ding ist völlig unnötig! (Roel im TR1-Forum)
	IP Logged

Borderman Ex Member	Re: Carburetor diaphragm replacement Reply #5 - 12.06.20 at 13:21:59 Thanks .... appreciate the reply
Borderman Ex Member
	IP Logged
