Oil or Grease in Chaincase (Read 85 times)
ali_vmax
TR1 Board Newbie
*




Posts: 4
Gender: male

Bike: 1982 Yamaha XV1000 TR1
Oil or Grease in Chaincase
26.10.25 at 11:44:59

Dear All,

I am New in this Forum & require help.
I got the classic mighty 1982 TR1 from a German friend.
The TR1 has been sleeping more than 6 years.

Things done for TR1 :

1. Drained old petrol Fuel from Fuel Tank & Carbs
2. New Oil & Oil Filter Replaced
3. New Airfilter replaced
4. New Spark Plugs Replaced
5. Cleaned & replaced with repair Carb kits
6. Front Brakes were Jammed !! cleaned & New Brake fluid (DOT 4)
7. Rear Brake shoe & brake drums Cleaned
8. Brand New Front & Rear Bridgestone Tyres
9. New Gel Battery

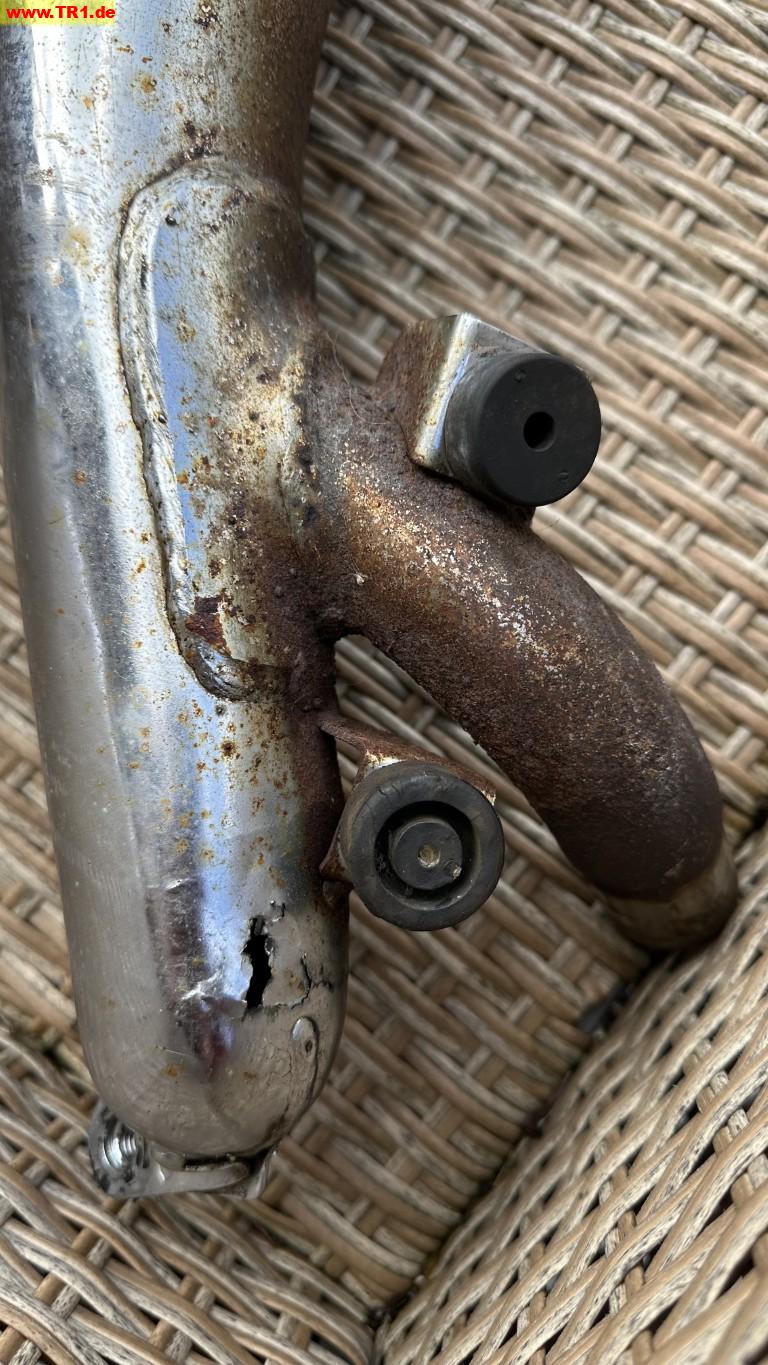

10. Fixed a small hole damage under left side Exhaust

The last thing is left in my opinion is the replace Oil or Grease in the Chaincase.


I have ridden more than 50 different motorcycles & I have never seen Chaincase system  Shocked

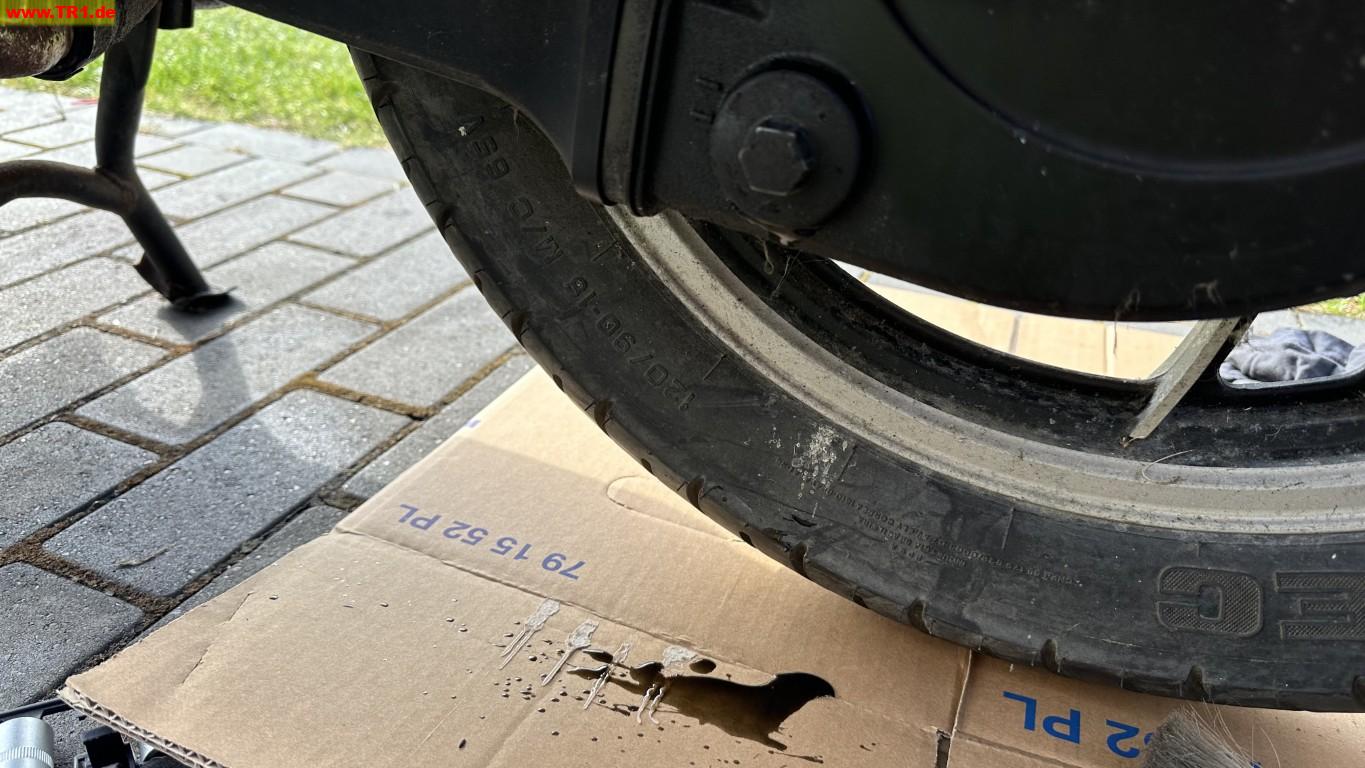

I have taken a photo of the oil dipped from the knot slowly opened.
The oil is not thick neither it is thin  Smiley

I have ridden 2 to 3 times in private area for 10 minutes of max speed doing 30 Km/h as I do not have plate number.

There has been no issue or sound from chain.

Please recommend that I change the oil or grease after 6 years sleeping? If yes, what type of Oil or Grease ?

How shall I know how much to fill in the top knot of chaincase ?

I do not see any Youtube video regarding this or did not find in Workshop manual.



One of member in Hamburg which is close to me, recommended to put Lithium Grease. Another member in the Forum recommend to put Chainsaw Oil.

I am confused what to do and what brand is best.  I sometimes ride very hard and I make sure the chain is in good condition.  Chain are expensive to replace. I want to avoid that  Wink

I just have fallen in Love with this classic Look of TR1.

TR1 was never been in Dubai.  I find it unique classic cult motorcycle.

It has been very easy to work on TR1, despite I am not mechanic.

My Iranian friends in Iran loves it and asking me that they want one  Grin

Your help is appreciated

Thank you

Regards,
Ali_Vmax


 IMG_4809.jpeg   IMG_4394.jpeg   IMG_4443.jpeg     Pictures below may be scaled. Click links or pictures for original size Click here for all attachments



Top of page
Email View Profile   IP Logged
BSchneider2000
TR1 Board Full Member
***




Posts: 232
Gender: male

Bike: TR1 (5A8)   130000km selbst gefahren.
Re: Oil or Grease in Chaincase
Reply #1 - 26.10.25 at 19:48:48

Hello Ali_Vmax,

...your exhaust certainly won't last long (that's the famous weak point), start
looking around for something new.

The chaincase would be the best thing that can drive in a desert state
(besides the cardan shaft, of course).
The way the case is dripping, I would remove the old oil and fill it with new grease.
No oil belongs in there; that's more of an experimental nature.
Yamaha recommends 1 kg of EP2 lithium grease (very pressure-stable),
0.7 kg is also enough; with it, the chain and sprockets will easily last 180-200,000 km.
And pay attention to the ventilation!!...otherwise it won't seal (it will be grease forced
out due to excess pressure).

Oh yeah, the TR1 isn't for brutes.
Greetings, Brunò  Cool




Motorradfahrer töten nicht, ...sie werden getötet.
......nur Bulldog (Hanomag) fahren ist schöner.
Top of page
Email View Profile   IP Logged
Yamaroel
TR1 Board Newbie
*




Posts: 46
Gender: male

Bike: Yamaha TR1 + Yamaha TDM 900 + Yamaha BT1100 Bulldog
Re: Oil or Grease in Chaincase
Reply #2 - 26.10.25 at 21:37:48

Ich selbst habe eine O-Ring-Kette an meinem TR1.
Sie ist seit 18 Jahren und 80.000 km gefahren.
Ist noch lange nicht abgenutzt.
Sprühen Sie die Kette einmal jährlich (3.000–4.000 km) mit Kettenspray ein.
Dies ist ganz einfach durch die Inspektionskappe in der Nähe des Hinterrads möglich.




Top of page
View Profile   IP Logged
ali_vmax
TR1 Board Newbie
*




Posts: 4
Gender: male

Bike: 1982 Yamaha XV1000 TR1
Re: Oil or Grease in Chaincase
Reply #3 - Yesterday at 13:58:21

Dear Bruno,

Thank you for your advice  Smiley

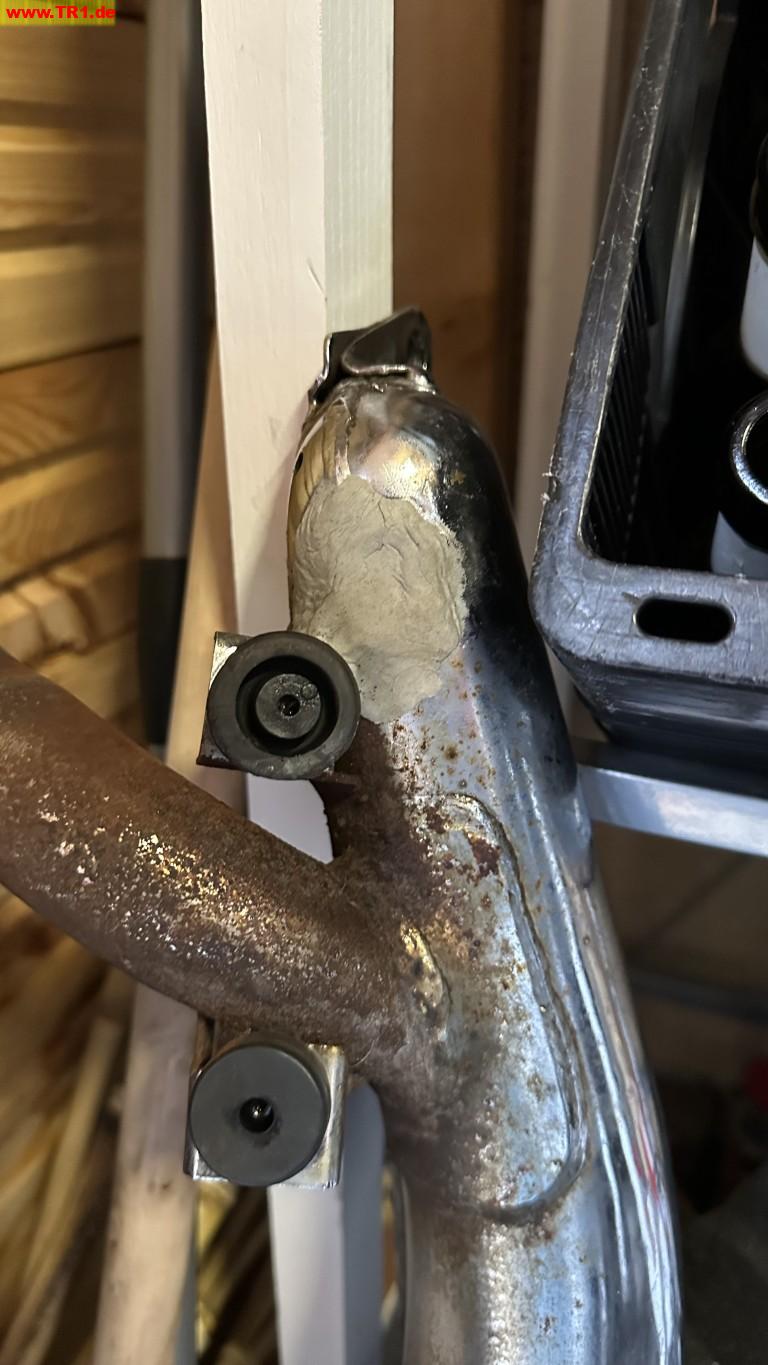

Earlier the same hole was on my Yamaha TDM850 which I use this same grey clay and never had any problem and it was hard like a rock.

Anyway, I am looking for second hand aftermarket exhaust or the original.

Great, i will buy 1 Kilo EP2 lithium grease & use 0,70 Kilo in the chain case  Wink

Perfecto  Thumb Up

Regards,
Ali Esfandiary (Ali_Vmax)
