Wheel spacers (Read 1453 times)

rantingsmith TR1 Board Junior Member Nothing worth doing is ever easy. Posts: 89 Gender: Bike: TR1 - Basket case, XV920 Sidecar project, XV750SE 'The Flying Anvil' cafe/brat	Wheel spacers 19.07.16 at 19:06:00 So I got a XS650 wheel for my Trine which I have been told is a direkt swap but as my project came all in boxes and had been converted to Suzuki 17" wheels I do not have a set of original spacers.. so could someone please measure their rear wheel spacers for me please? I am using a GL1000 wheel for the front so I'll work those out myself. Thank you.
	“Without passion man is a mere latent force and possibility, like the flint which awaits the shock of the iro
	IP Logged

nanno TR1 Board Extraterrestrial Member Ich mags halt gern ned ganz so original... Posts: 2274 Gender: Bike: TR1, XT600, SR500-Gespann	Re: Wheel spacers Reply #1 - 19.07.16 at 20:47:14 Give me a shout on faceache tomorrow, lest I forget...
	Frei ist, wer frei denkt! http://greasygreg.blogspot.co.at/
	IP Logged

rantingsmith TR1 Board Junior Member Nothing worth doing is ever easy. Posts: 89 Gender: Bike: TR1 - Basket case, XV920 Sidecar project, XV750SE 'The Flying Anvil' cafe/brat	Re: Wheel spacers Reply #2 - 19.07.16 at 22:55:43 Cool, thanks, I'll FB PM you as I have been staying off it since the whole Brexit thingy..
	“Without passion man is a mere latent force and possibility, like the flint which awaits the shock of the iro
	IP Logged

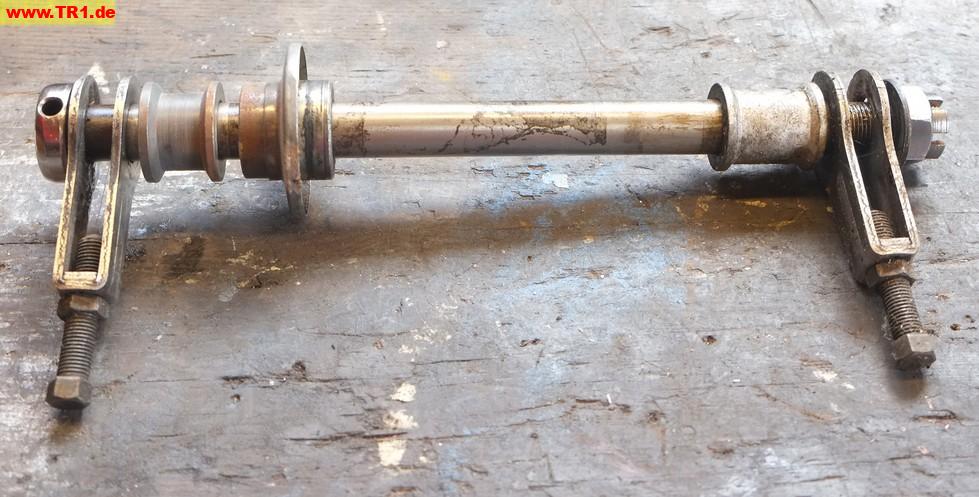

kdemery TR1 Board Senior Member Posts: 397 Gender: Bike: TR1 & Vincent Rapide	Re: Wheel spacers Reply #3 - 20.07.16 at 15:37:19 Hello Here is what you need. From left to right: TR1 Axle TR1 chain tensioner XS650 axle spacer 25mm XS650 axle spacer 31mm TR1 axle spacer 36mm TR1 chain tensioner All the best. Kevin
	DSCF1405-A.jpg Picture below may be scaled. Click link or picture for original size \| Click here for all attachments
	IP Logged

rantingsmith TR1 Board Junior Member Nothing worth doing is ever easy. Posts: 89 Gender: Bike: TR1 - Basket case, XV920 Sidecar project, XV750SE 'The Flying Anvil' cafe/brat	Re: Wheel spacers Reply #4 - 21.07.16 at 06:10:35 Cool, Thanks Kevin! Any Reason you can think of that the two on the left can't be just one spacer? Also why has the no2 spacer got a wider flange? Cheers, Rant.
	“Without passion man is a mere latent force and possibility, like the flint which awaits the shock of the iro
	IP Logged

kdemery TR1 Board Senior Member Posts: 397 Gender: Bike: TR1 & Vincent Rapide	Re: Wheel spacers Reply #5 - 21.07.16 at 16:01:40 Hello Rant The number 2 spacer flange is 'push on'. It can slide along the spacer shaft and works as a dust cover over the wheel bearing. You could combine the first two spacers as one but you would need to make a dust cover to protect the bearing. Given the work involved it may be better for you to source the original XS650 spacers? Best of luck Kevin

	IP Logged
