Anja-D
TR1 Board Senior Member


carpe diem
Posts: 463
Gender:
Bike: 1981 TR1. (5A8), modified with XV1100 (3LP) Eng.
|

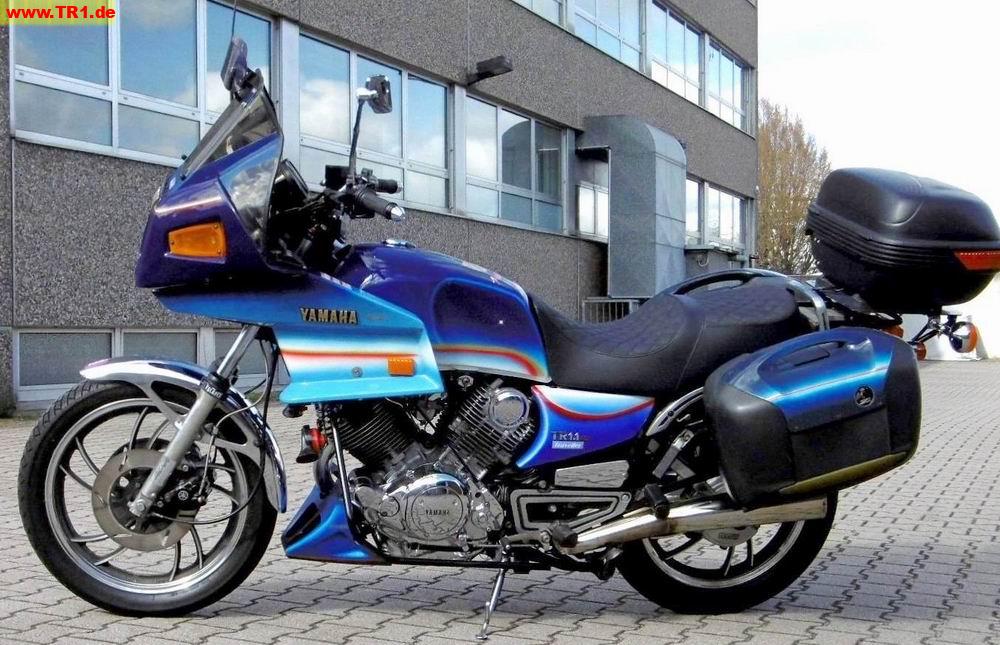

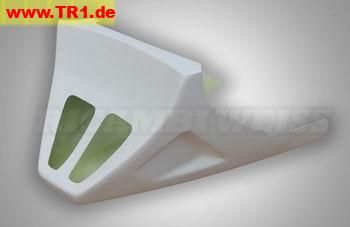

Hello Hans_klokkie, a couple of years I was faced with the same question. I found a Spoiler / Belly Pan basically designed for BT1100, manufactured by Ricambi - Weiss. Unfortunely they do not produce it any more. see first Picture, secound picture shows the reshaped Ricambi-Belly pan. There was a little bit of cuttting-off work neccessary, depending on the position of the forward Exhaust Pipe. Further I wanted to see the Oil-Level-Inspetion-Glas, without removing Parts.
I just had quick searchon the Internet. "BT1100 Belly Pan" brings some results for your further going investigation.

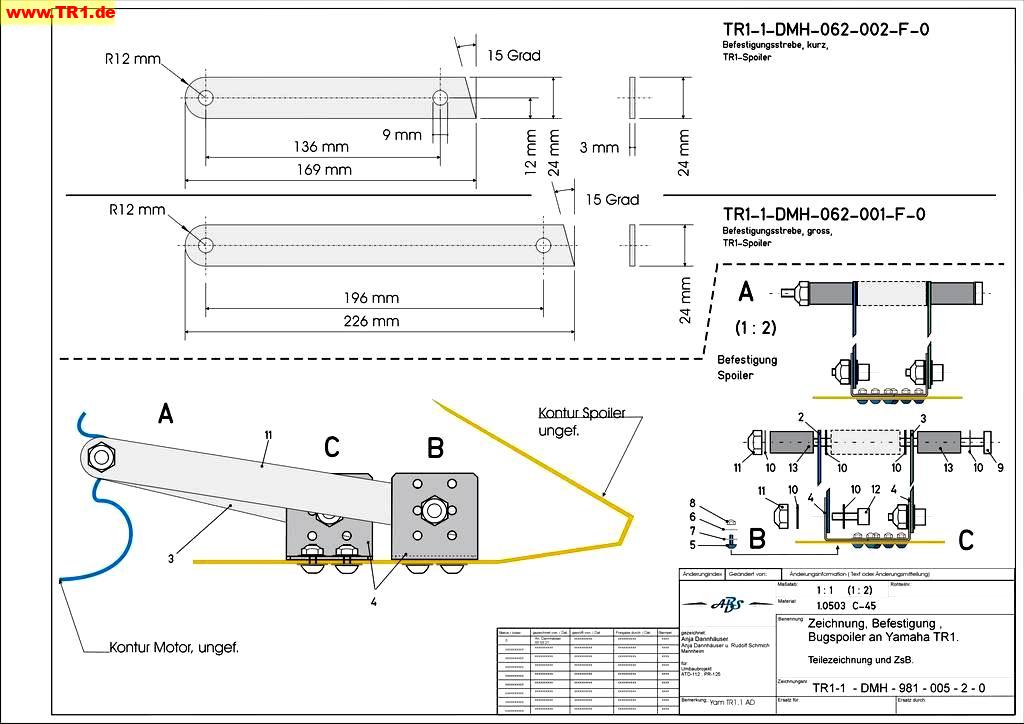

Next Winter or After-Season-Inspection I want to redesign the Mounting of my Belly Pan with adjustable Screws.
Hope that will help you
Regards Anja
|
