Front Brake Caliper Parts
18.12.25 at 23:59:45
Hello,

Installed new brake pistons on my XV920R rebuild.

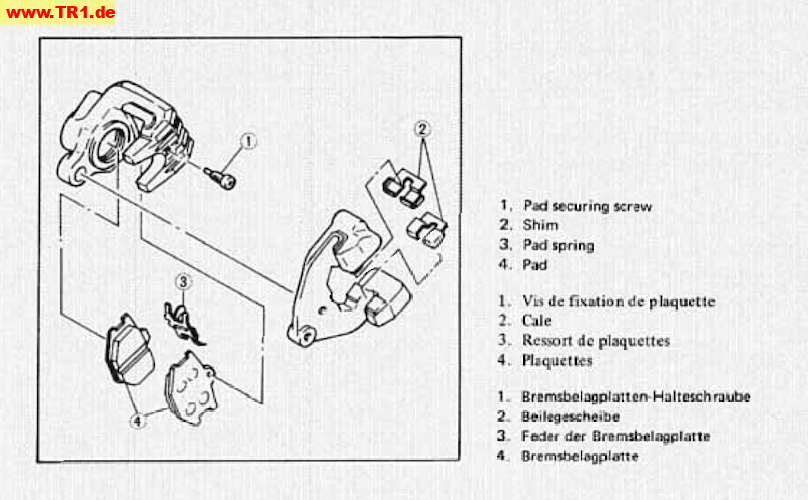

Now it was about 3 months between me taking them apart and them putting it all back together, and I don't think I have lost any parts, BUT, I do not have the pad spring, (Feder der Bremsbelagplatte), #3 in the diagram below.

Is this something that used to come with a new set of pad but now doesn't ?
Could a previous owner have left them out ?

I can't seem to find any for sale anywhere.

 Screenshot_2025-12-18_at_22_59_24.png     Picture below may be scaled. Click link or picture for original size | Click here for all attachments

Top of page
View Profile   IP Logged
edef45
TR1 Board Junior Member
**




Posts: 72
Gender: male

Bike: TR1 Bj 81   und   TR1 Bj 81 mit Watsonian Cambridge SW
Re: Front Brake Caliper Parts
Reply #1 - 19.12.25 at 01:02:00
Hello,

I have also seen brakes where this part was missing, but this spring should definitely be installed.
You can get it wherever parts for these brakes are sold; identical parts are used in the Yamaha XS 650, XS 750/850, XS 1100 and XJ 650, for example.
Shop example: https://www.xs650shop.de/bremsen/bremsbelag-shim-set-77-84/29-3200

Best regards



Top of page
Email View Profile   IP Logged
Anja-D
TR1 Board God Member
*****


carpe diem

Posts: 529
Gender: female

Bike: 1981 TR1. (5A8), modified with XV1100 (3LP) Eng.
Re: Front Brake Caliper Parts
Reply #2 - 19.12.25 at 08:07:48
Good Morning Odradek,
habe a look here:
https://www.motorcyclespareparts.eu/de/yamaha-ersatzteile/1wg259190000

This shout be the correct Part

Regards Anja



TR1 seit 1982, die aktuelle seit 1988, schraube und fahre selbst
Top of page
Email View Profile   IP Logged
Odradek
TR1 Board Newbie
*




Posts: 32

Bike: XV920R
Re: Front Brake Caliper Parts
Reply #3 - 20.12.25 at 20:08:26
Thank you.
