Turntable / Drehtisch
26.04.21 at 15:42:46

Not TR1 specific  Roll Eyes

My garage has a downhill slope into it and it is a pain to be reversing the bike down into it.
I can ride it down, but then I have the problem of turning it round.

So, I bought a heavy duty, 300 mm diameter "Lazy Susan" bearing with a load capacity of 450 kg. from Bangood (Cheap!) Heavy-Duty-Metal-Bearing and a pre-cut roundel of 5 mm thick aluminium with the same diameter from Ebay - also cheap - Scheibe-Aluminium 300x5

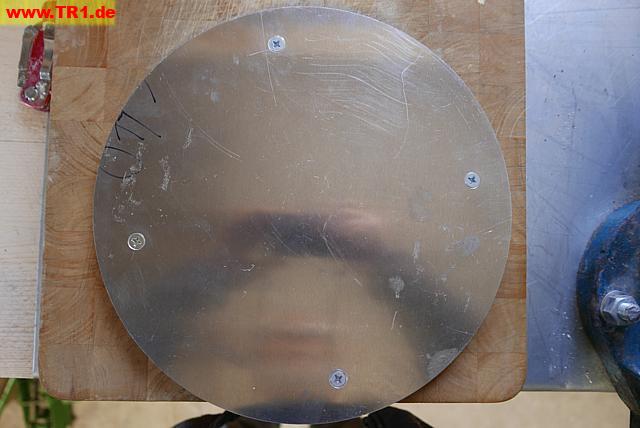

Its a simple job to bolt the plate to the bearing with M6 nuts & bolts. The bolts need to be cut as short as possible to avoid fouling.
I think I made mine 8 mm.
After assembling and testing that the bolts don't bind in the bearing, I centre-punched between the bolt and nut to lock them.

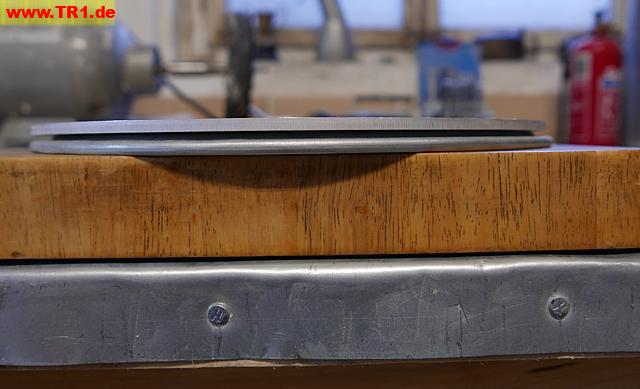

The plate and bearing are 15 mm thick so its not too hard to get the bike on the stand


A short video of operation:Turntable


 lzs3.jpg   lzs2.jpg   lzs1.jpg     Pictures below may be scaled. Click links or pictures for original size Click here for all attachments



Certain defects are necessary for the existence of individuality
Top of page
Email View Profile WWW   IP Logged
Manfred
TR1 Board Administrator
*****


Take it easy!

Posts: 381
Gender: male

Bike: Yamaha TR1 '81 (bought September 1984 as new)
Re: Turntable / Drehtisch
Reply #1 - 26.04.21 at 22:38:30

Nice idea! Below you find the above linked video directly embedded:



This was also to check if embedding a video directly to a board post does work Smiley




Don't ask me anything technical about the TR1!
I'm the computer guy, not the mechanic!
CoolCoolCool
Top of page
View Profile WWW   IP Logged
shalesy
TR1 Board Newbie
*




Posts: 34
Gender: male

Bike: TR1 - 1984
Re: Turntable / Drehtisch
Reply #2 - 26.04.21 at 23:09:06

Thumb Up

Not the same code as an <iframe> embed from YouTube then?





Certain defects are necessary for the existence of individuality
Top of page
Email View Profile WWW   IP Logged
Manfred
TR1 Board Administrator
*****


Take it easy!

Posts: 381
Gender: male

Bike: Yamaha TR1 '81 (bought September 1984 as new)
Re: Turntable / Drehtisch
Reply #3 - 27.04.21 at 08:24:36

No, since it has to fit to the >20 year old forum software YaBB. I might enhance it the next weeks to have an "embed YouTube video" button... But, I do not like external content too much. E.g. if I would not save regularily external hosted pictures local to TR1.de, for sure most of them would have gone already and the affected posts would often be useless. Same applies probably with the videos...
