TR1 With BT1100 crank (Read 25948 times)

Loekm TR1 Board Newbie Egli Tr1 Posts: 45 Gender: Bike: Egli frame Tr1 engine track only	Re: TR1 With BT1100 crank Reply #90 - 22.03.20 at 18:59:31 Nice! My oil drain plug is already the pickup for the oilcooler. I didn't like the modification of the original oil circuit so built a second one with a small electric pump....

	IP Logged

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #91 - 22.03.20 at 20:00:33

	IP Logged

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #92 - 08.05.20 at 12:42:43 for those interested, oil temperature gauge back in stock https://www.kickstartershop.de/en/oil-temperature-gauge-virago-xv1000-xv750

	IP Logged

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #93 - 13.05.20 at 14:45:08 Test drive made about 100 km, engine runs very well, a lot of torque at the bottom, but after some time a strange ticking on the right side of the front cylinder at the height of the timing chain https://www.youtube.com/watch?v=ix8oHh-K8vE

	IP Logged

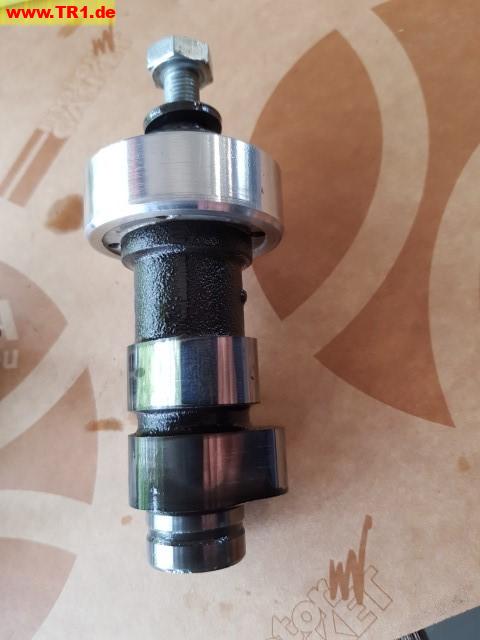

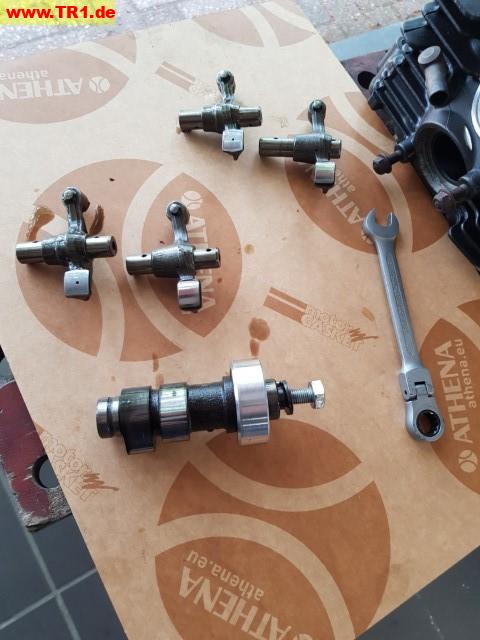

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #94 - 13.05.20 at 14:55:12 already checked: camshafts ok, rocker arms and shafts ok, at the same time mounted the rocker arms, shafts and bushings of the BT1100, chain tensioners ok
	20200512_132228_Klein.jpg 20200512_132801_Klein.jpg 20200512_132819_Klein.jpg Pictures below may be scaled. Click links or pictures for original size \| Click here for all attachments
	IP Logged

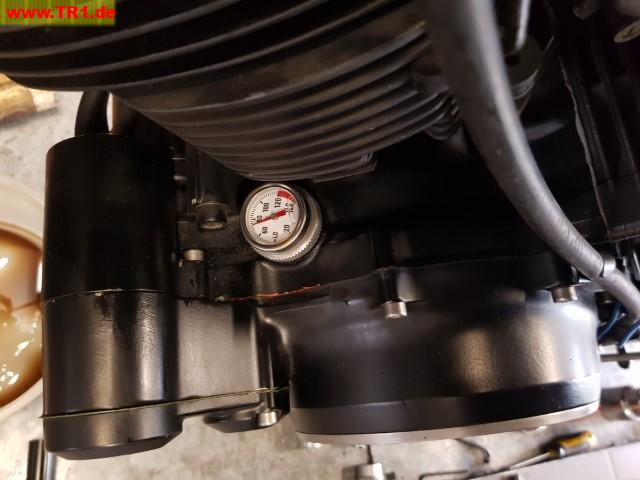

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #95 - 13.05.20 at 14:58:37 oil temperature gauge
	20200513_123744_klein_001.jpg Picture below may be scaled. Click link or picture for original size \| Click here for all attachments
	IP Logged

ha_motorrad TR1 Board God Member Posts: 513 Gender: Bike: TR 1	Re: TR1 With BT1100 crank Reply #96 - 13.05.20 at 17:43:27 It seems to me there is missing the second chain guide (when I look to the photo).

	IP Logged

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #97 - 13.05.20 at 20:39:10 no, the photo is of the rear cylinder, the chain guide from the side of the chain tensioner is shorter, but I hope it is not a piston shaft (end of connecting rod), normally not because the crankshaft, pistons and cylinders of the BT1100 have only 30000km and were mounted with great care and a lot of oil

	IP Logged

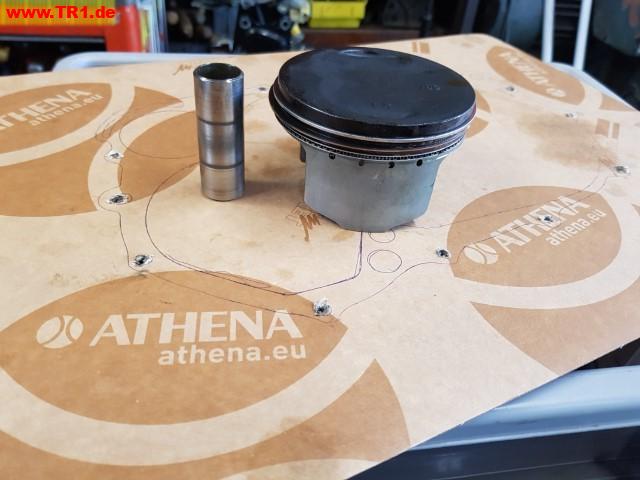

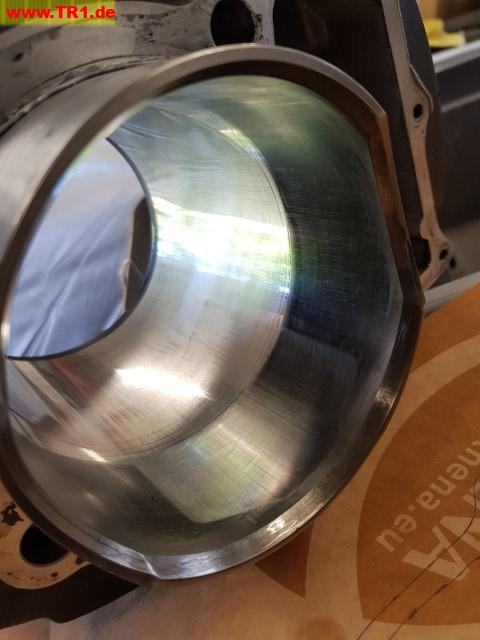

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #98 - 14.05.20 at 17:38:02 How STUPID can I be. pistons, shafts, connecting rods, cylinders ok, distribution gear front cylinder NOK
	20200514_155837_Klein.jpg 20200514_155846_Klein.jpg 20200514_155921_Klein.jpg Pictures below may be scaled. Click links or pictures for original size \| Click here for all attachments
	IP Logged

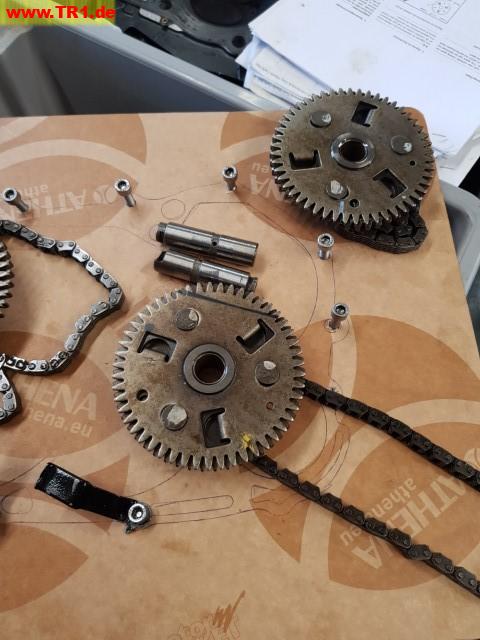

patricks TR1 Board Full Member Posts: 117 Gender: Bike: cbr1000rr , mutant tl1000r , Stroker tr1 caferacer, Beast tr1 caferacer	Re: TR1 With BT1100 crank Reply #99 - 14.05.20 at 17:40:26 hopefully problem solved, now waiting for new seals
	20200514_164708_Klein.jpg 20200514_165224_Klein.jpg 20200514_170643_Klein.jpg Pictures below may be scaled. Click links or pictures for original size \| Click here for all attachments
	IP Logged
