Wiring diagrams



Click for a wiring diagram of the TR1 (and XV750SE) German and UK models. To download as "us_uk_XV750SE_TR1.jpg" click here. A German TR1 does not have the "Turn signal cancel switch" (Blinkerabschalter). This should be the only difference. Everything else should be the same. Please note that in the original plans (as below) cylinder #1 (rear) and #2 (front) are reversed. I fixed this in this plan here!



Below you find some original and modified/simplified wiring diagrams from Andi "Odin". For any question please send him an e-mail!



Original US/UK XV750SE/TR1: Click here to download

Original US XV920R chain: Click here to download

Original US XV920 '83 cardan shaft: Click here to download



ATTENTION: I do not take any responsibility for any potential damage which may occur by applying the following simplified wiring diagrams!
ACHTUNG: Ich übernehme keinerlei Verantwortung für jegliche mögliche Schäden die durch die Verwendung der nachfolgenden vereinfachten Schaltpläne entstehen!



Minimum/simple UK XV750SE/TR1: Click here to download

Minimum/simple US XV920R chain: Click here to download

Minimum/simple US XV920 '83 cardan shaft: Click here to download

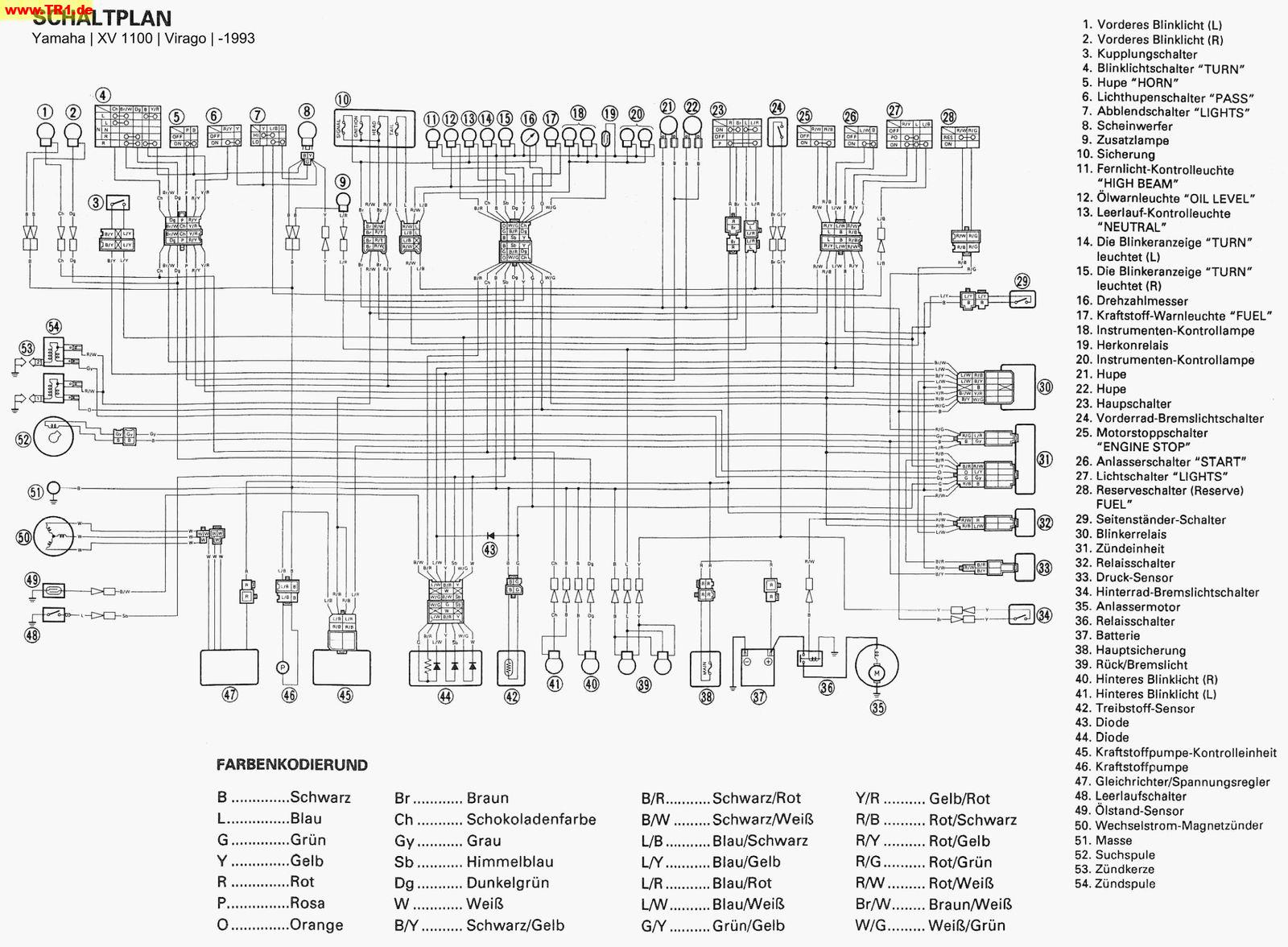

Following wiring digram from Arn Johnson covers the XV1100 Virago 1993 and 1994 with a vacuum sensor (1TA-82380-20), with only a 2-pole sensor coil (3JK-81670-00) and with a control unit (3JK-82305-00). He got the wiring diagram direct from Yamaha Germany. Added December 2024



XV1100 Virago 1993/1994: Click here to download
