Complete XV1000(TR1) parts catalog / microfiche scans
Here you find scans from the original TR1 microfiches. I'm sorry for the poor quality.
While viewing a picture, you can use the arrow keys to move forward or backward and the ESC key to cancel.
 |
Here is a link to the official Yamaha Part's Catalog. There you'll find also the part's listings and the microfiches in much better quality. Bur just for all the XV920* models. You might need to click on the "Proceed to Parts Catalog" button! You can also download a PDF file of the TR1 parts catalog for the XV1000'81 (5A8/Europe) in English. Added May 2021 Other models: XV1000'82 (19T/Europe) in English, XV1000'81 (5A8/France) in French, XV750'96 (4PW3/Europe, 4GK4/Switzerland & Austria) in English, XV1100'91 (3LP2/Europe, 3EG4/Oceania) in English, XV920MK'83 (27Y) in English. Added July 2023 |

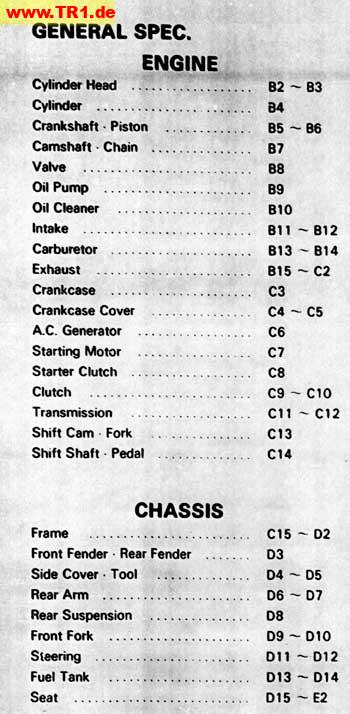

| Content | Page id's |
|---|---|
| Engine / Chassis I | B2 - C14 / C15 - E2 |

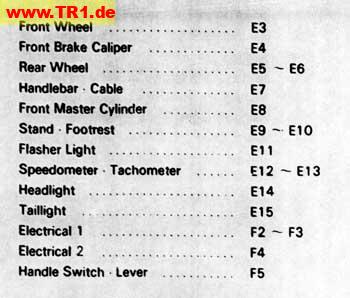

| Chassis II | E3 - F5 |
| International / Index | G3 - M2 |
| Engine parts drawings | Parts listings |
|---|---|

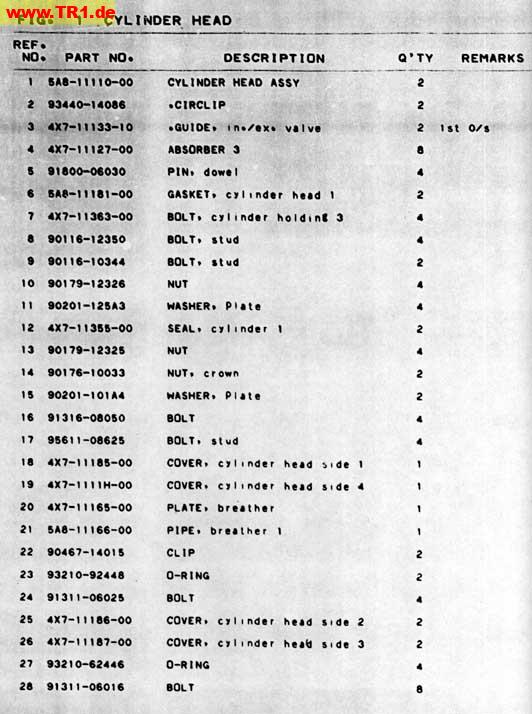

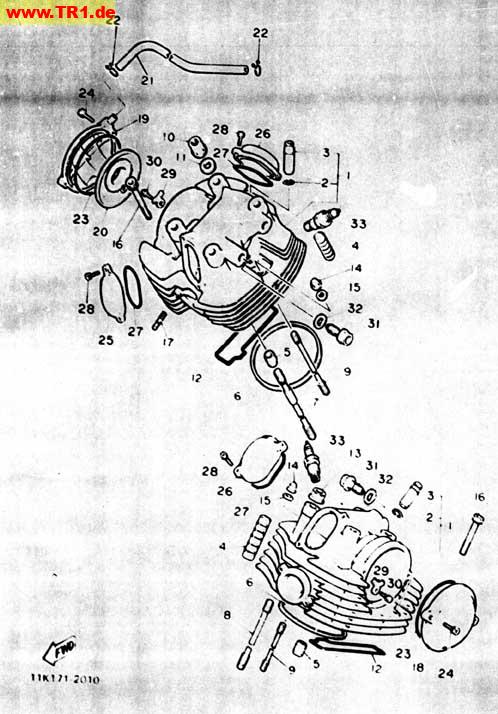

| Cylinder Head | B2 | B3 |

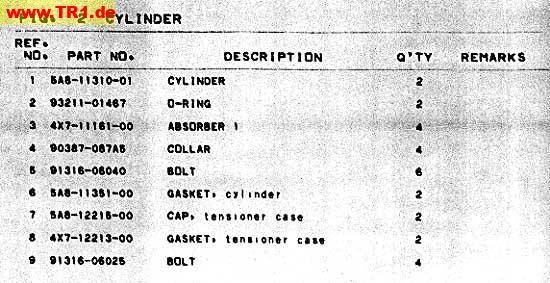

| Cylinder | B4 |

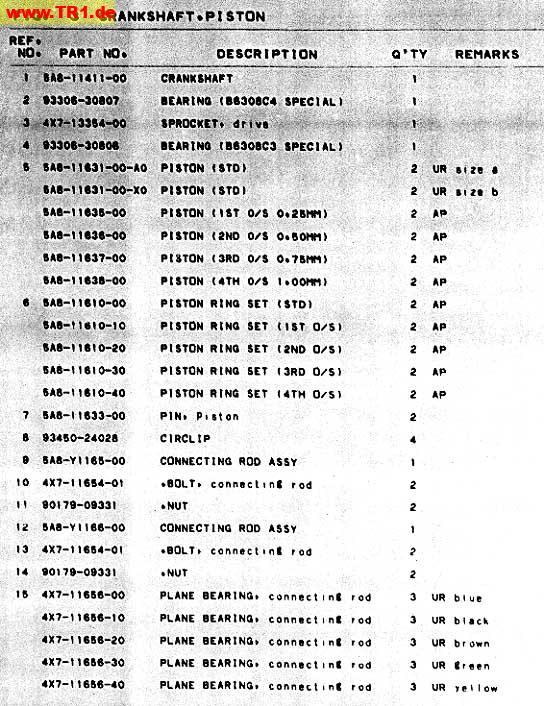

| Crankshaft - Piston | B5 | B6-1 | B6-2 |
| Crankshaft - Chain | B7 |

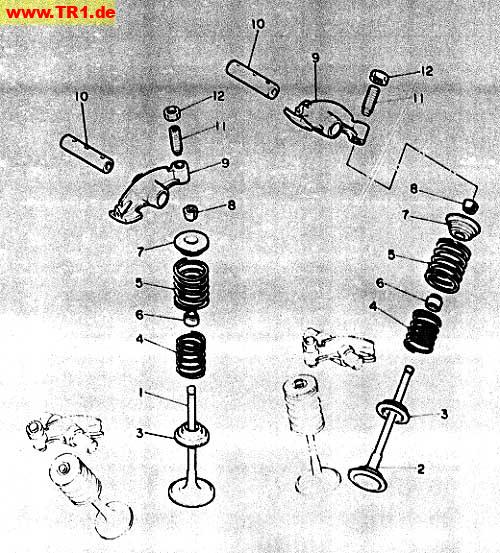

| Valve | B8 |

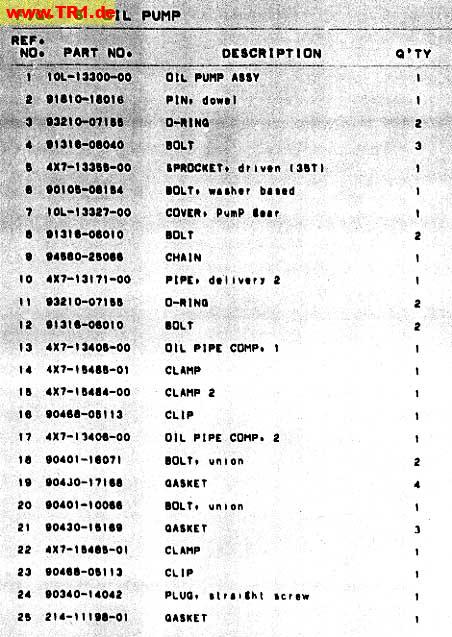

| Oil Pump | B9 |

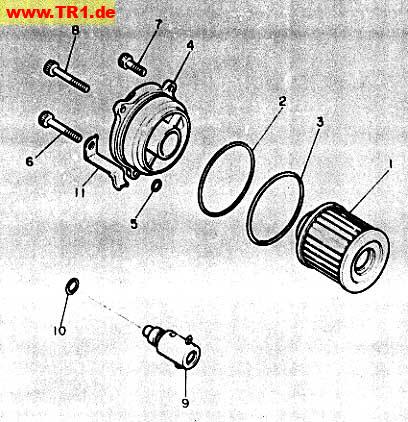

| Oil Cleaner | B10 |

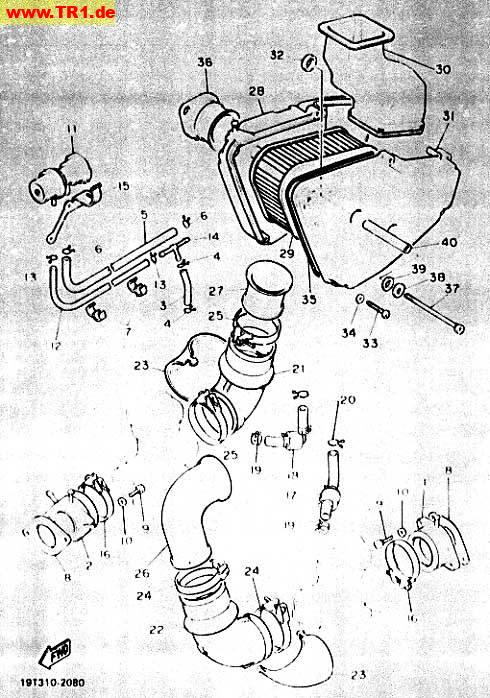

| Intake | B11 | B12 |

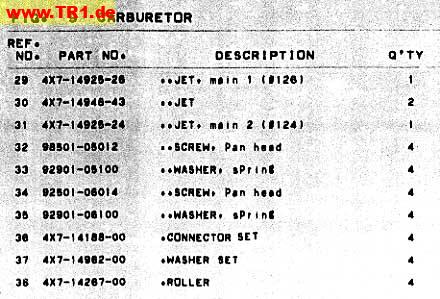

| Carburetor | B13 | B14 |

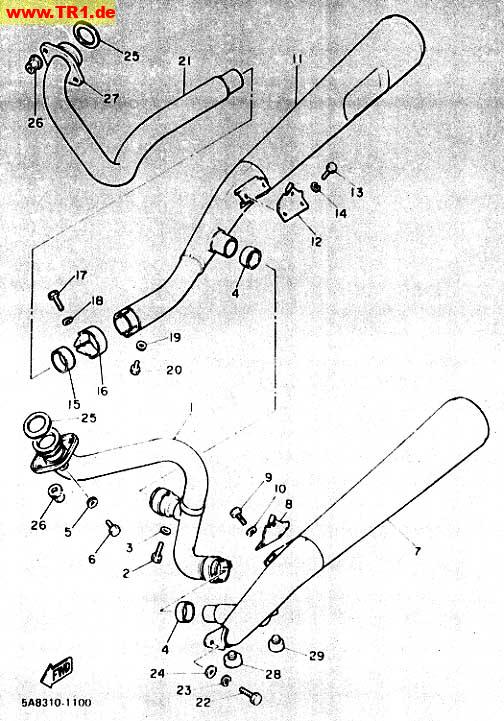

| Exhaust | B15 | C2 |

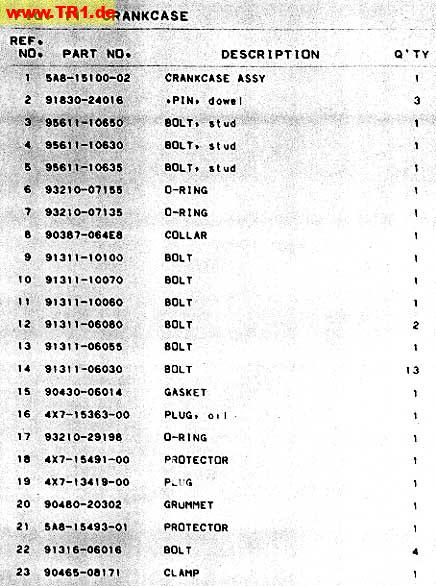

| Crankcase | C3 |

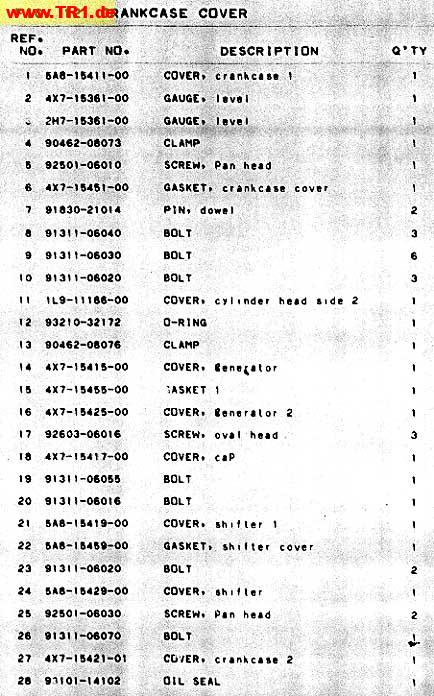

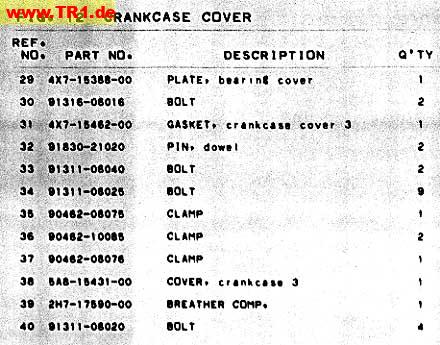

| Crankcase Cover | C4 | C5 |

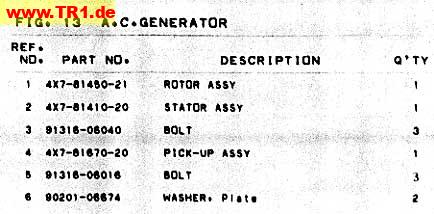

| A.C. Generator | C6 |

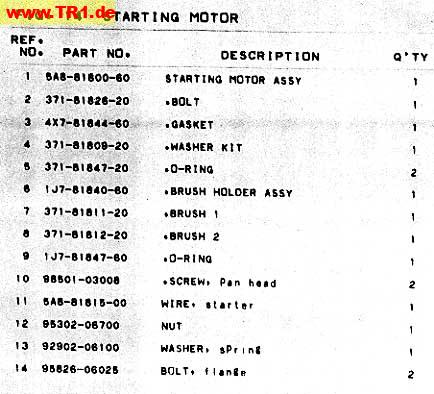

| Starting Motor | C7 |

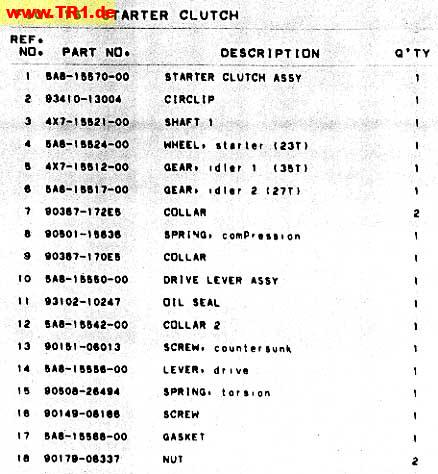

| Starter Clutch | C8 |

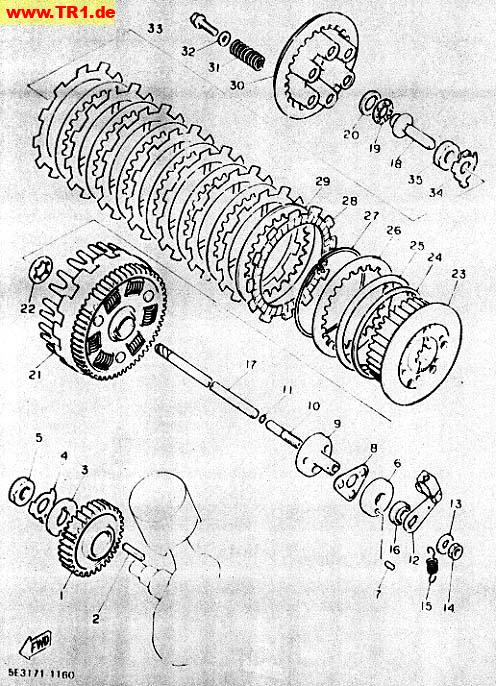

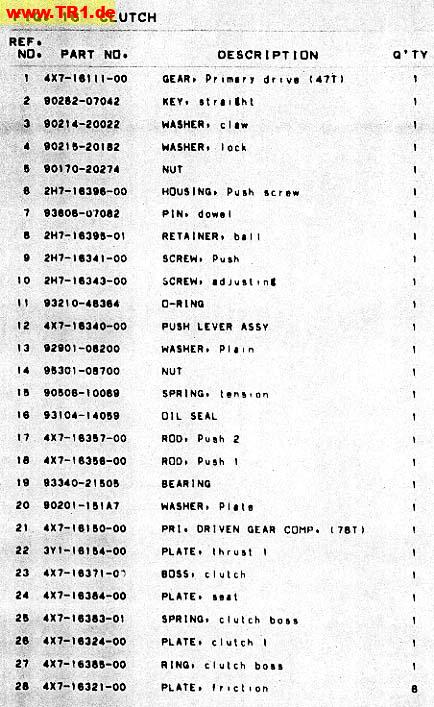

| Clutch | C9 | C10 |

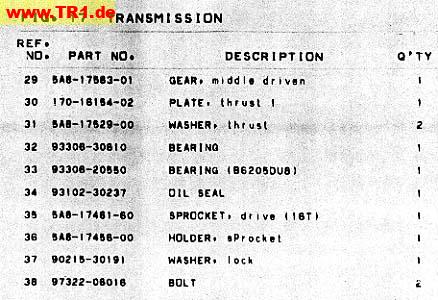

| Transmission | C11 | C12 |
| Shift Cam Fork | C13 |

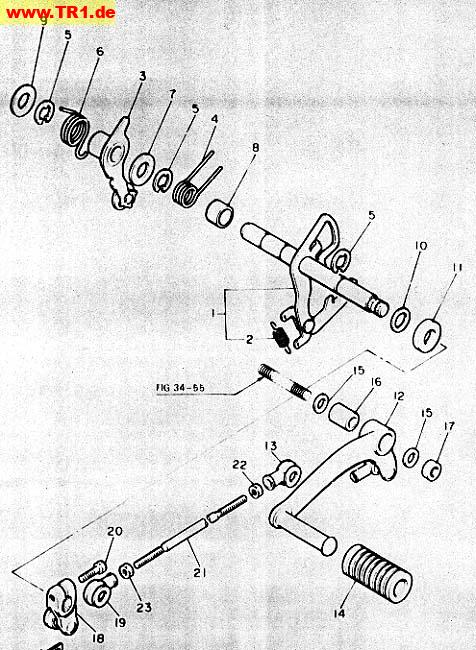

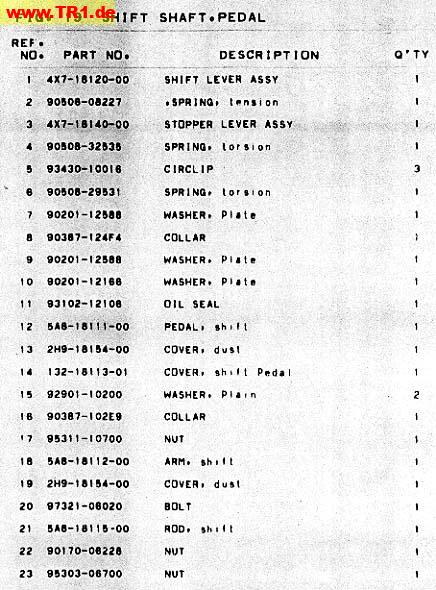

| Shift Shaft Pedal | C14 |
| Chassis drawings | Parts listings |
|---|---|
| Frame | C15 | D2 |
| Front/Rear Fender | D3 |

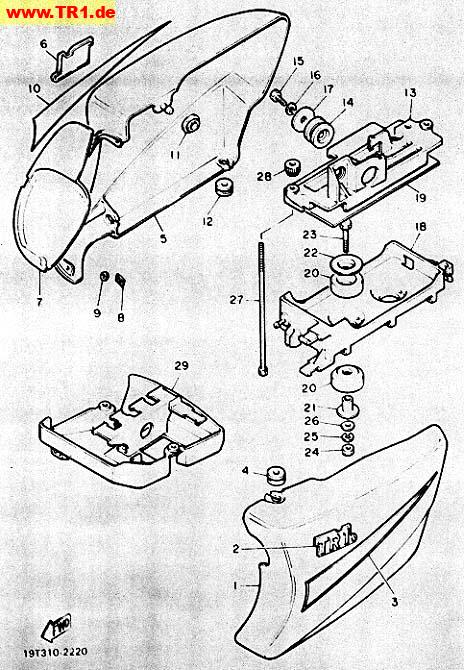

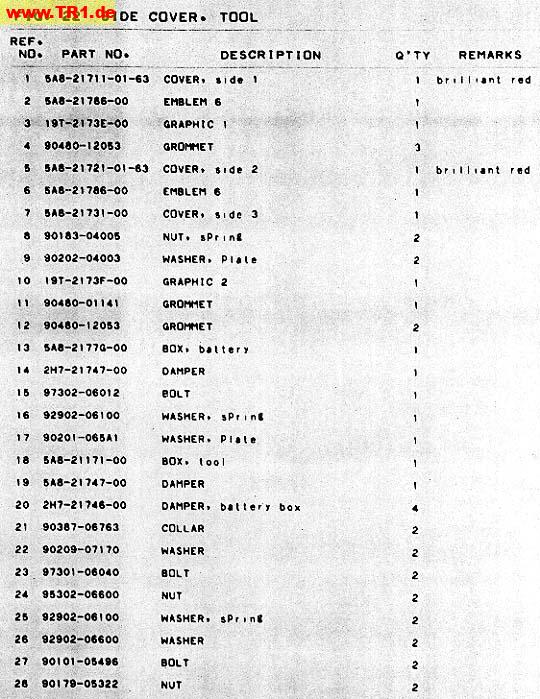

| Side Cover Tool | D4 | D5 |

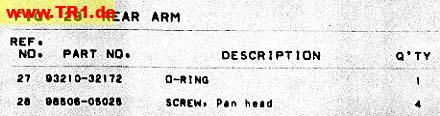

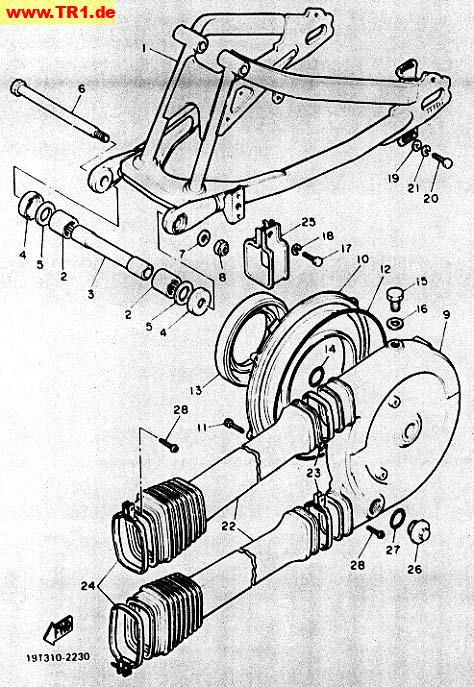

| Rear Arm | D6 | D7 |

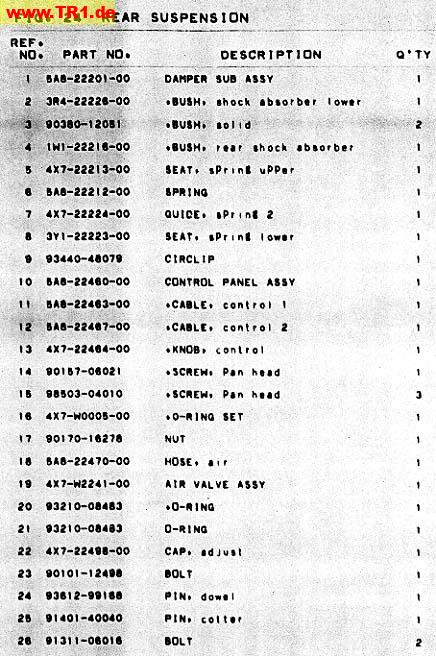

| Rear Suspension | D8 |
| Front Fork | D9 | D10 |

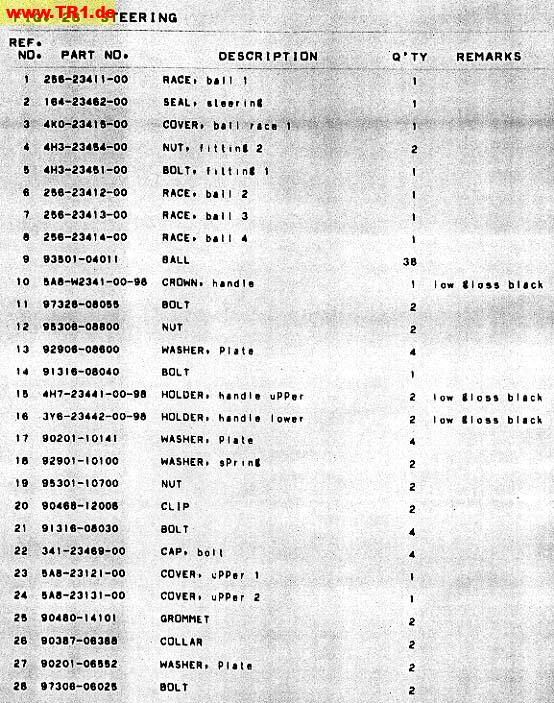

| Steering | D11 | D12 |

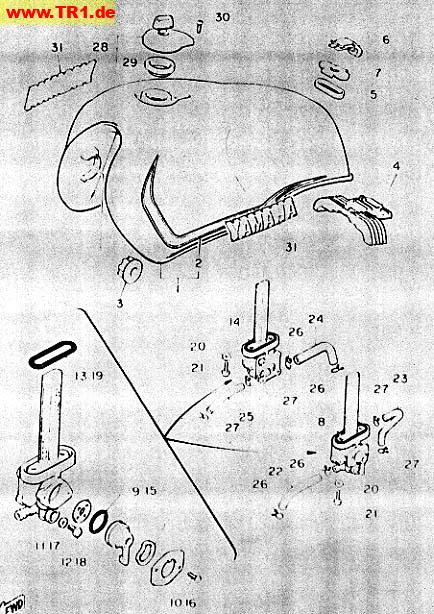

| Fuel Tank | D13 | D14 |

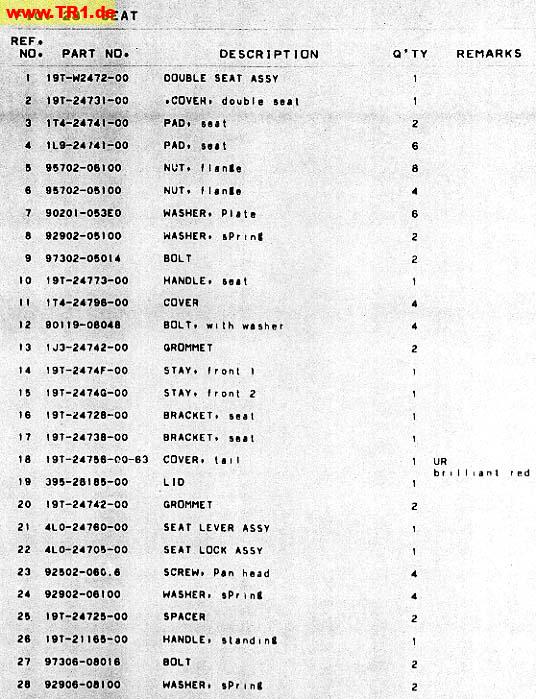

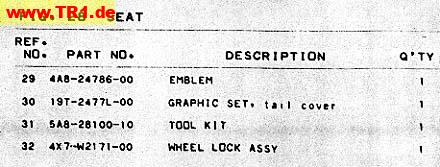

| Seat | D15 | E2 |

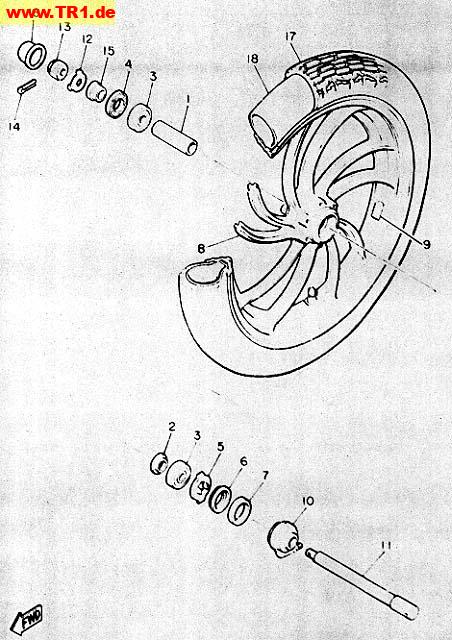

| Front Wheel | E3 |

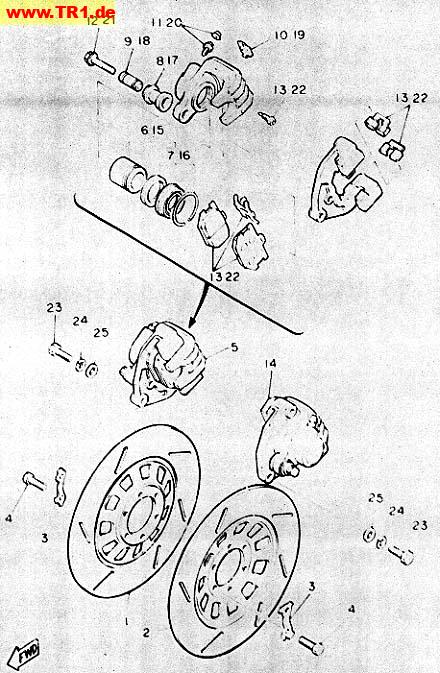

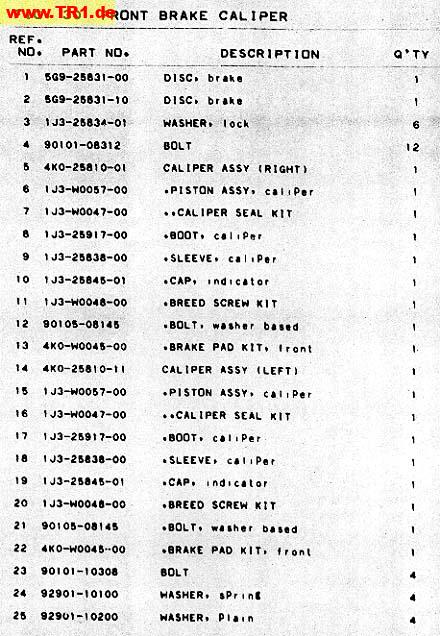

| Front Brake Caliper | E4 |

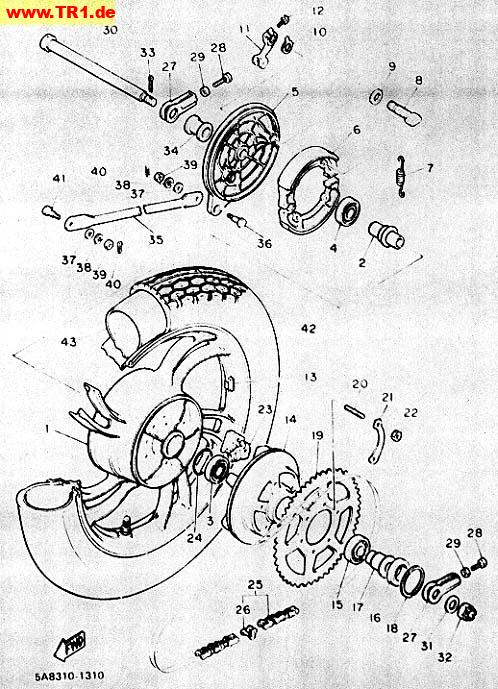

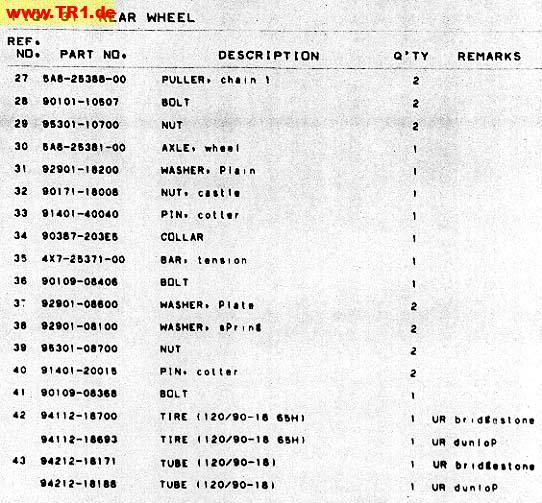

| Rear Wheel | E5 | E6 |
| Handlebar Cable | E7 |

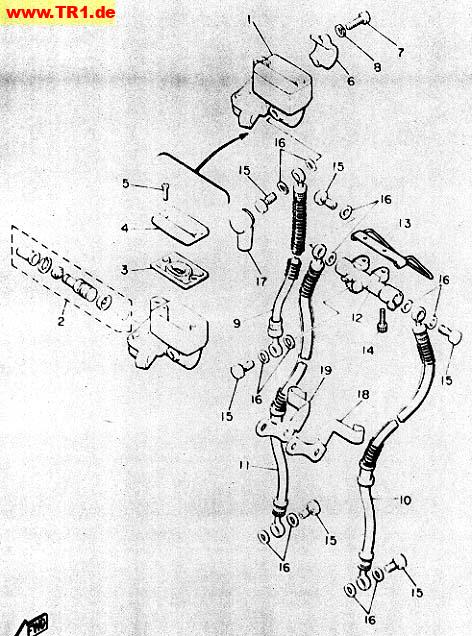

| Front Master Cylinder | E8 |

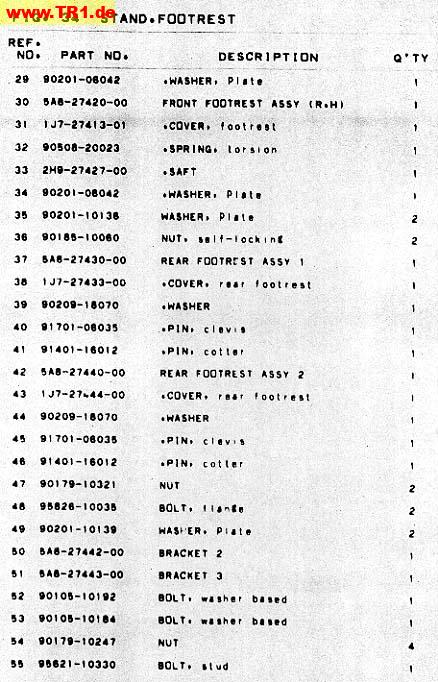

| Stand Footrest | E9 | E10 |
| Flasher Light | E11 |

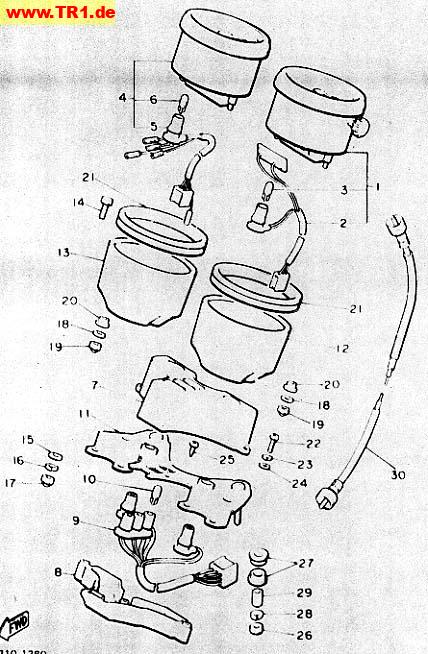

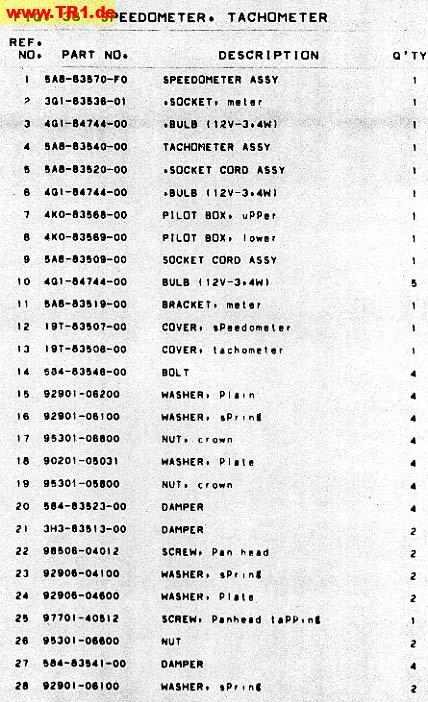

| Speedo-/Tachometer | E12 | E13 |

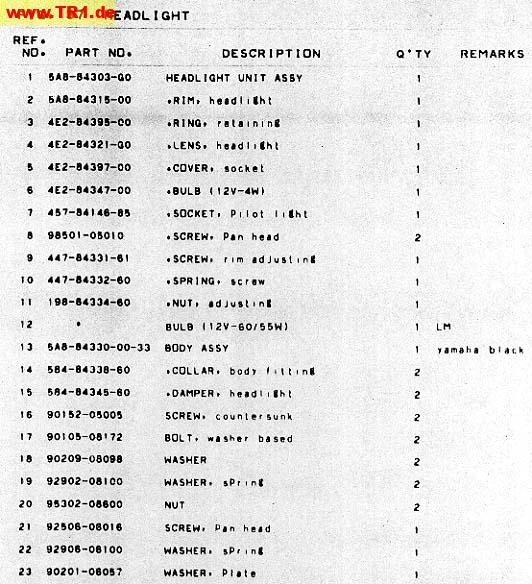

| Headlight | E14 |

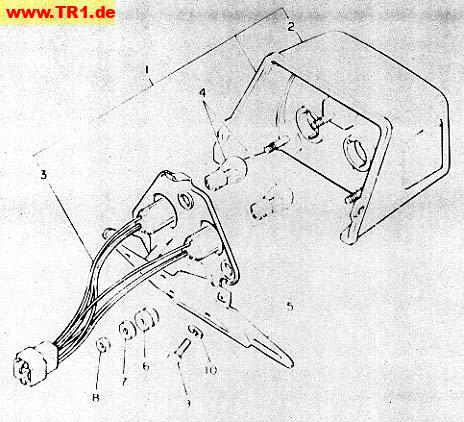

| Taillight | E15 |

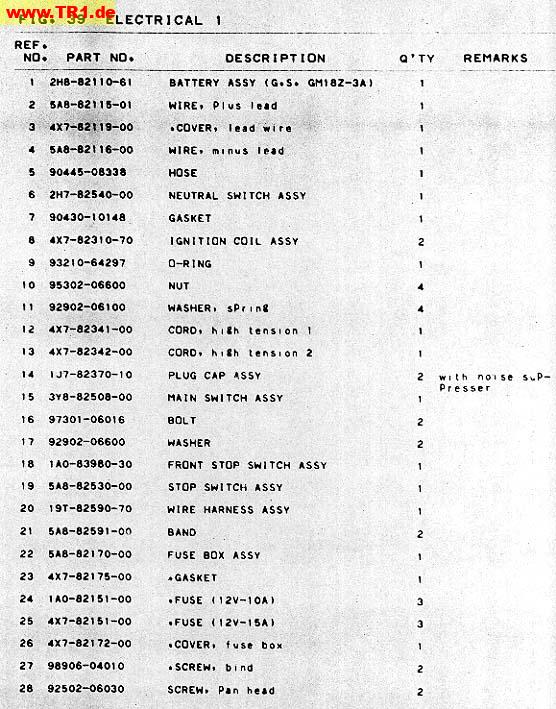

| Electrical 1 | F2 | F3 |

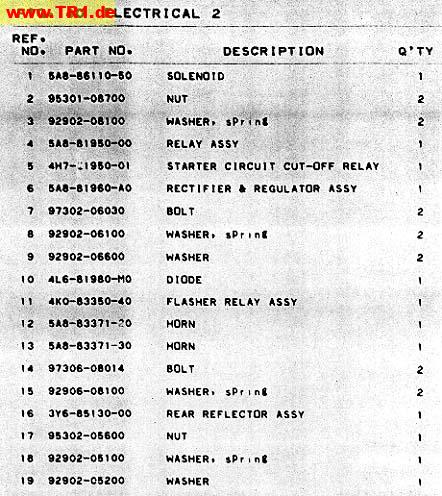

| Electrical 2 | F4 |

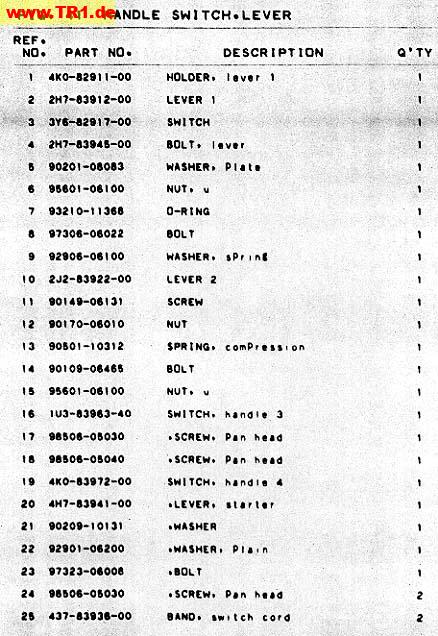

| Handle Switch Lever | F5 |
| Austria,Belgium,Holland,Italy | Parts listings |
|---|---|
| Chassis | G3 |
| Taillight | G4 |
| Electrical | G5 |
| Denmark,Finland,Norway,Sweden,Switzerland | Parts listings |
|---|---|
| Chassis | G7 |
| Taillight | G8 |
| Electrical | G9 |
